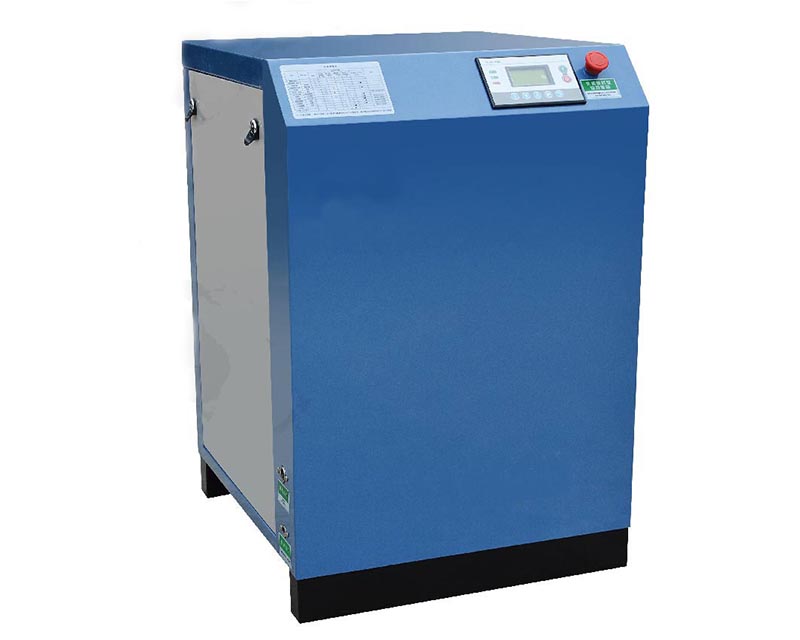

Oil-free Scroll Air Compressor

Patented scroll wrap design with labyrinth seal provides superior performance and reliability Proprietary tip seal reduces air leakage while extending service intervals Normal maintenance can be completed without disassembling pump Integrated Design for Maximum User Benefits

Send Inquiry

Product Description

oil-free scroll air compressor

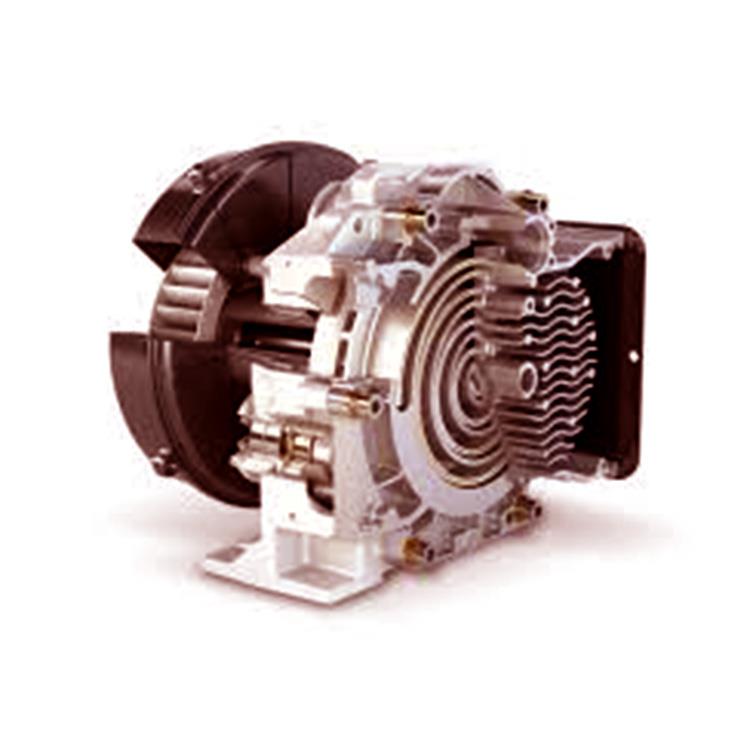

EP Exclusive Scroll and Pump Design

Patented scroll wrap design with labyrinth seal provides superior performance and reliability

Proprietary tip seal reduces air leakage while extending service intervals

Normal maintenance can be completed without disassembling pump

Integrated Design for Maximum User Benefits

Certified Class 0 oil free air

Highly efficient cooling

Multi stage cooling reduces ambient temperature out

Receiver tank helps dissipate heat while reducing compressor starts/stops

Air pressures to 145 psig

Extremely quiet

Sound levels as low as 48 dB(A)

Full enclosure standard

Mechanical and electrical vibration isolation

Designed to be placed at point of air need

Compact design reduces floor space needed

Maintenance friendly

Easy accessibility for inspection and maintenance

EP is always working for high technology of air compressor. After developing of water lubrication oil free screw air compressor, we continue develop the two-stage compression of 4.0 Mpa oil free screw air compressor standards such as JB/T 11882-2014 . Oil-free scroll air compressor is a new design and developed by HL which is different from any others scroll air compressor in the world. HL scroll air compressor more reasonable structure, good heat dissipation, longer using life, better stability, air-end 2 years warrantly and also the only one who can manufacture 1.2Mpa scroll air compressor in the global.

Oil-free scroll air compressor features :

1、High precision & inventive design air-end, longer service time and 2 years warranty

2、Using permanent magnet motor,compressor efficiency is improved 10%

3、Motor is connected with air-end directly, without belt,coupling,no need adjustment, super low noise

4、PLCcontroller display discharge temperature, pressure,operation time, maintenance remain and fault alarm,etc.

Oil-free Scroll Air Compressor

EP Exclusive Scroll and Pump Design

Oil-free Scroll Air Compressor

Model	Motor power		Working pressure	FAD	Noise	Connection	N.W.	Dimension
	Motor power		Working pressure	FAD	Noise	Connection	N.W.	LWH
	KW	HP	Mpa	L/min	dB(A)	inch	kg	mm
CMW2.2-0.8	2.2	3	0.2-0.8	255	49±3	1/2″	132	670630945
CMW3.7-0.8	3.7	5	0.2-0.8	415	52±3	1/2″	150	7206801050
CMW4.4-0.8	2.2*2	6	0.2-0.8	510	52±3	1/2″	150	8006501020
CMW7.4-0.8	3.7*2	10	0.2-0.8	830	55±3	1″	185	8807201120
CMW11-0.8	3.7*3	15	0.2-0.8	1245	58±3	1″	300	14509001150
CMW15-0.8	3.7*4	20	0.2-0.8	1660	61±3	1″	350	14509001150

CMW2.2-1.0	2.2	3	0.2-1.0	215	49±3	1/2″	132	670630945
CMW4.5-1.0	4.5	6	0.2-1.0	410	52±3	1/2″	150	7206801050
CMW4.4-1.0	2.2*2	6	0.2-1.0	430	52±3	1/2″	150	8006501020
CMW9-1.0	4.5*2	12	0.2-1.0	820	58±3	1″	185	8807201120
CMW13.5-1.0	4.5*3	18	0.2-1.0	1230	61±3	1″	300	14509001150
CMW18-1.0	4.5*4	25	0.2-1.0	1640	61±3	1″	350	14509001150

CMW3.0-1.2	3	5	0.2-1.2	210	49±3	1/2″	135	670630945
CMW4.2-1.2	4.5	6	0.2-1.2	360	52±3	1/2″	150	7206801050
CMW6.0-1.2	3*2	8	0.2-1.2	420	52±3	1/2″	150	8006501020
CMW9-1.2	4.5*2	12	0.2-1.2	720	58±3	1″	185	8807201120
CMW13.5-1.2	4.5*3	18	0.2-1.2	1080	61±3	1″	300	14509001150
CMW18-1.2	4.5*4	25	0.2-1.2	1440	61±3	1″	350	14509001150
