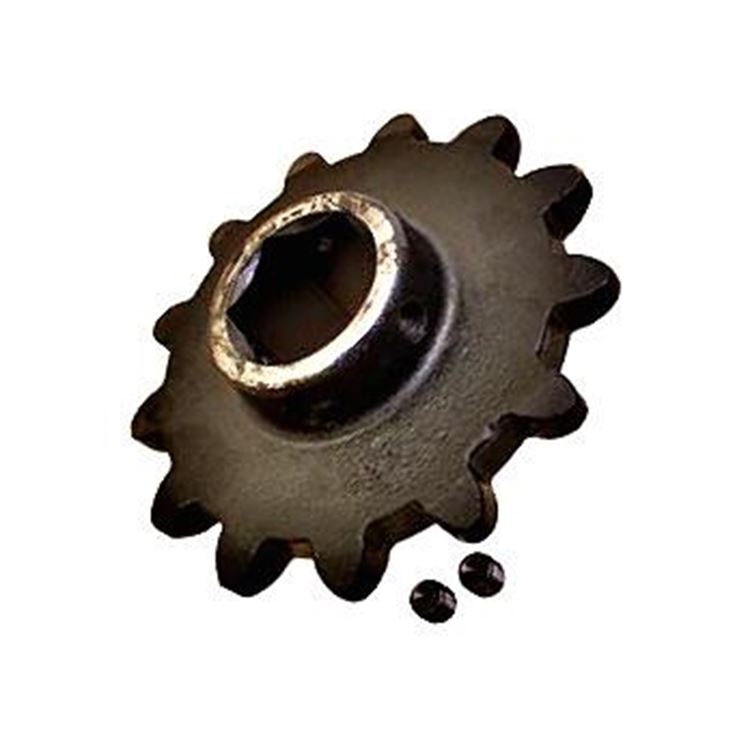

Feederhouse Chain Sprocket
Ensuring the transmission of torque through the chain to the working units of the drive.
This spare part is used for replacing worn out or damaged parts during repairs.
| Weight , W | kg | 2.2 |
| Inner diameter , d | mm | 44.5 |
| Outer diameter , D | mm | 100 |
| Inner HEX Bore , A | mm | 45x51 |
| Number of teeth , Z | 10 | |
| Number of mounting holes , N | 2 | |
| Mounting holes diameter , Dm | mm | 11 |
| Height , H | mm | 67 |
| Thread , M | M12 | |
| Carving step , t | mm | 1.75 |
| Edge Diameter , De | mm | 68 |
| Outside diameter , D1 | mm | 150 |
| Root radius , R | mm | 10 |
