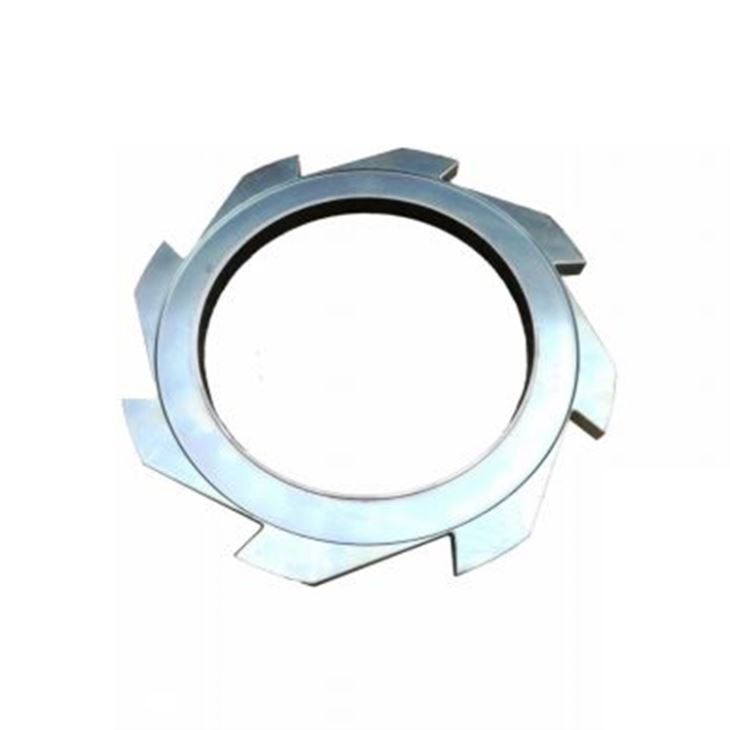

Escalator Ratchet Sprocket

We are top 3 major supplier of sprockets for escalator in China. We produced already for Schindler elevator, Hitachi elevator , Thyssen krupp escalator and Toshiba elevator.

Send Inquiry

Product Description

escalator Ratchet sprocket

We are top 3 major supplier of sprockets for escalator in China. We produced already for Schindler elevator, Hitachi elevator , Thyssen krupp escalator and Toshiba elevator.

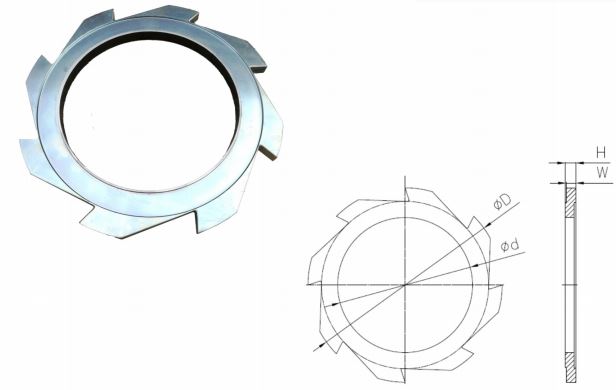

Escalator Ratchet Sprocket

ID	Cust.	Total Types	Outer Height	Inner Diameter	Tooth Diameter	Number of Width	Teeth


			(H) mm	（D)	(0d)	(W)	(z)
			(H) mm	（D)	(0d)	(W)	(z)
TK-RW -001	TK	Left
TK-RW -001	TK	左置	19	360	250.6	17.5	8
TK-RW -002	TK	Right
TK-RW -002	TK	右置	19	360	250.6	17.5	8
TK-RW -003	TK	Half
TK-RW -003	TK	分体	20	335	215	20	8
TK RW 004	TK	Middle
TK RW 004	TK	中置	30	335	225.6	24	8
TK-RW -005	TK	Middle
TK-RW -005	TK	中置	50	335	225.6	44	12
TK-RW -006	TK	Right
TK-RW -006	TK	右置	25	360	250.6	23.5	12
TK-RW -007	TK	Left
TK-RW -007	TK	左置	25	360	250.6	23.5	12
TK-RW -008	TK	Right
TK-RW -008	TK	右置	25	360	250.6	23.5	12
TK-RW -009	TK	Middle
TK-RW -009	TK	中置	50	300	225	50	20
