Drop Forged Rivetless Chain Sprockets

Drop Forged Rivetless Chain Sprockets

Raydafon is proud to be a dedicated supplier to the manufacturing industry. We are a leading source for quality new and used equipment. We understand that keeping your equipment running is vital keeping your customers happy and we can provide equipment or replacement parts to get your machine or next project back on schedule.
Chains and sprockets must work together, so buying them from the same source makes sense. When chains and sprockets articulate correctly, the life of the chain is extended. That means long-term savings and real value for your application.

998A10 Sprocket

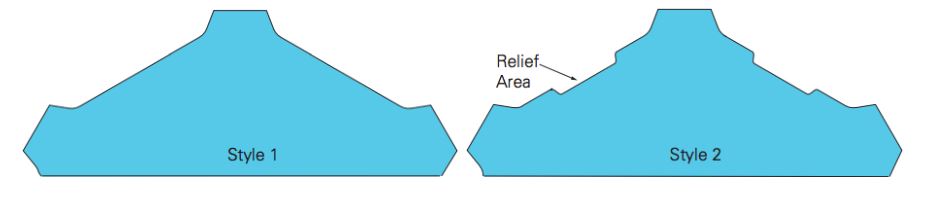

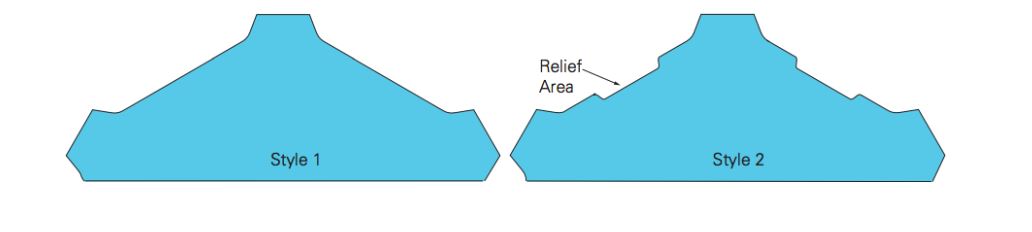

This 998A10 drop forged rivetless A-plate sprocket has 10 teeth, is manufactured specifically for 998 chain, and is designed to work with the chain and attachments as smoothly as possible. However, some applications require sprockets that have an extra clearance that is commonly known as the "relief area". We offer both styles as shown below, make sure to let us know what your application is or which style of sprocket you need so we can get you the exact match for your application.

• Pitch: 9.031"

• Plate Thickness: 1.250"

• Number Of Teeth: 10

• Stock Bore: 1.500"

• Weight: 583.00 LBS

• Style: A-Plate

• Compatible Chain Sizes: 998, S-998

998C10 Sprocket

• Pitch: 9.031"

• Plate Thickness: 1.250"

• Number Of Teeth: 10

• Stock Bore: 1.500"

• Maximum Bore: 6.500"

• Pitch Diameter: 57.730"

• Hub Diameter: 10.000"

• Length Through Bore: 6.750"

• Weight: 703 LBS

• Style: C-Hub

• Compatible Chain Sizes: 998, S-998
