Driveline Motor Of Irrigation System

Driveline motor Of Irrigation System

Driveline Motors

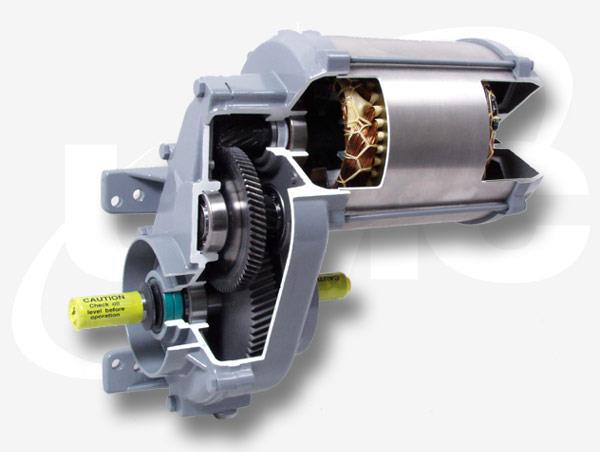

Power Saver III:

Application: 480/360 Volt A.C. Electric motors with 95% Efficient planetary speed reducing gearboxes for power transmission of electric drive Center Pivot / lateral move Systems. Also uses in power transmission for injection pump on chemical applicators.

Ratios Include:20:1, 30:1 40:1, 50:1 & 60:1: also Available with Stainless steel motor housing

Features and Benefits

• All aluminium gear case and motor housing for cooler running, longer life, and increased corrosion resistance.

• Class F insulation and materials are used throughout.

• All critical electrical connections are encapsulated to resist penetration of moisture.

• Proven reliability.

• Multi-bolt mounting pattern fits (3 3/8″ x 6 3/8″), (4 3/4″ x 7 1/4″) and (5″ x 6″) bolt patterns.

• Voltage 460V 60Hz, 380V 50Hz.

• Helical gear design, high strength steel shafting for long life and dependability.

• Make possible the use of smaller generators and smaller incoming wire sizes.

• Thermally protected with automatic reset.

• All gears are heat treated.

• Shipped with gear oil.

• Specially designed input and output seals

• Tip fill plug position to set correct oil level.

• CSA approved.

• Efficiency 95%

Center Drive:
Application: Speed reducing worm gearbox to be used in conjunction with Electric motors for power transmission of electric drive Center Pivot / lateral move Systems.
Ratios Include:30:1 40:1, 50:1 & 60:1

Electric Motor:

Application: 480/360 Volt A.C. Electric Motors to be used in conjunction with Center drives for power transmission of electric drive Center Pivot / lateral move Systems.

Model: 1 1/2 Horse Power
