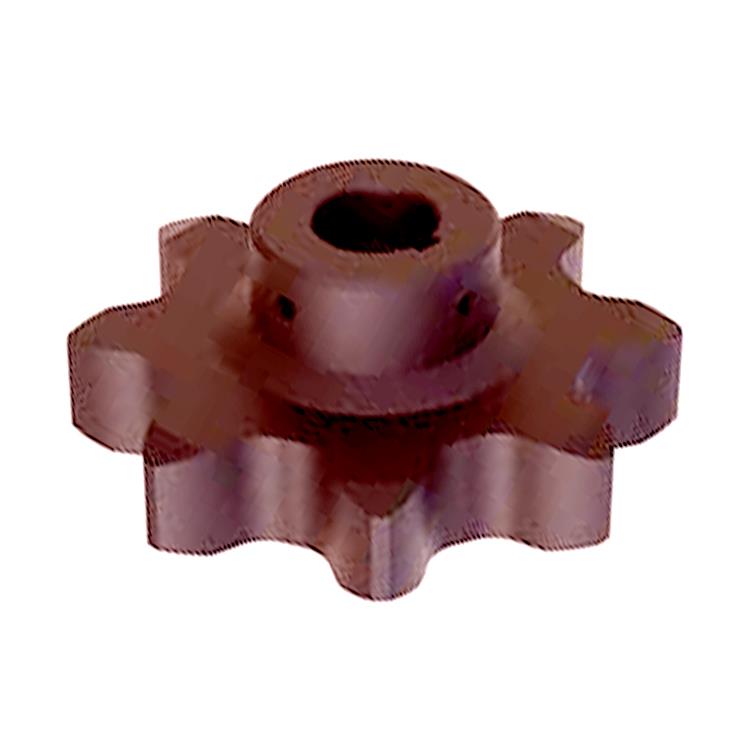

Once you use a Split Sprocket, you may never want to use a setscrew mount style again. Removal or installation is a breeze. Can be used in virtually all applications. An additional benefit to Black Ace’s split sprockets is that the shaft/keyway security is much tighter than a typical setscrew mount.
| SPROCKET SERIES | C55 | C60 | C77 | C188 | C131 | C102B |
| CHAIN PITCH (INCHES) | 1.631 | 2.307 | 2.308 | 2.609 | 3.075 | 4 |
| CHAIN ROLLER DIAMETER | .72" | .75" | .72" | .88" | 1.250" | .97" |
| PLATE THICKNESS | 5/8" | 7/8" | 5/8" | 1" | 1" | 2" |
| COMMON DESIGNATIONS | C55 - C55L | C60 | C77 - N77 | C188 - BRH188 - C188M | C131 | C102B - C102BM - N102B |
