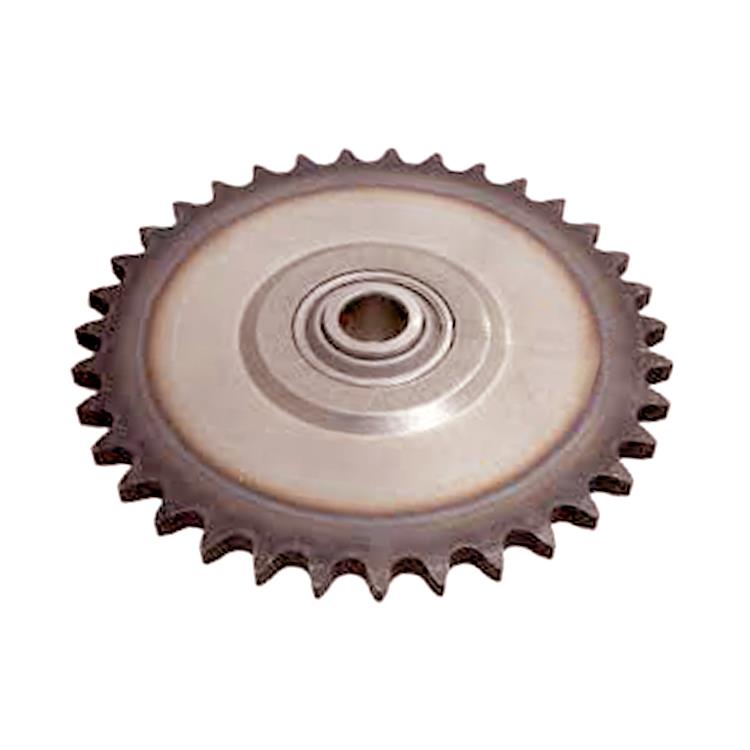

Ball Bearings Sprocket

For use on series 50 chain, 5/8" pitch provides flexible mounting options Idler sprocket with ball bearings offer reduced friction for longer sprocket life and less drag on the system Can be used to change direction of chain motion or to adjust chain tension Varying numbers of teeth and stock bore sizes offer deployment flexibility High carbon steel for strength and durability

Send Inquiry

Product Description

ball bearings sprocket

For use on series 50 chain, 5/8" pitch provides flexible mounting options
Idler sprocket with ball bearings offer reduced friction for longer sprocket life and less drag on the system
Can be used to change direction of chain motion or to adjust chain tension
Varying numbers of teeth and stock bore sizes offer deployment flexibility
High carbon steel for strength and durability

Ball Bearings Sprocket

Chain Size	35
Number of Teeth	20
Strands	1
Outside Diameter	2.59 in.
Pitch Diameter	2.278 in.
Bearing Type	Ball
Bearing Bore (inch)	.635 / .640
Bearing Bore (mm)	16.129 / 16.256
Length Through Bore	0.72
Maximum RPM	3000
Chain Pitch	3/8 in.
Material	Steel
Teeth	Hardened
Weight (lbs)	0.39
