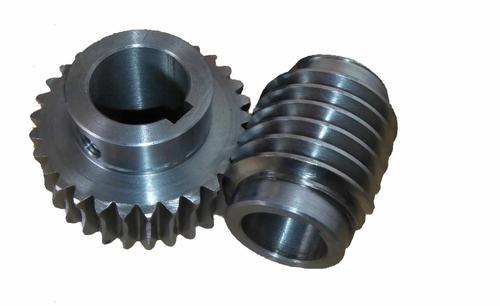

Worm And Worm Gear

Best choice of gearing when high drive reduction is required. Worm Wheels resemble spur gears with the addition of a throat cut into the O.D. of wheel. The throat permits the worm wheel to fully envelope the threads of the worm. Threads, not teeth are cut on the worm, and by adjusting the number of threads, different ratios can be achieved without altering mounting arrangements. A unique feature of Worm and Wheel assemblies is their ability to prohibit back driving

Pitch: 16 to 64 DP and 1.5 to .5 MOD

Material: Brass for Worm Gear and Stainless Steel for Worm

Single, Double or Quad Start
