Product Description

v belt

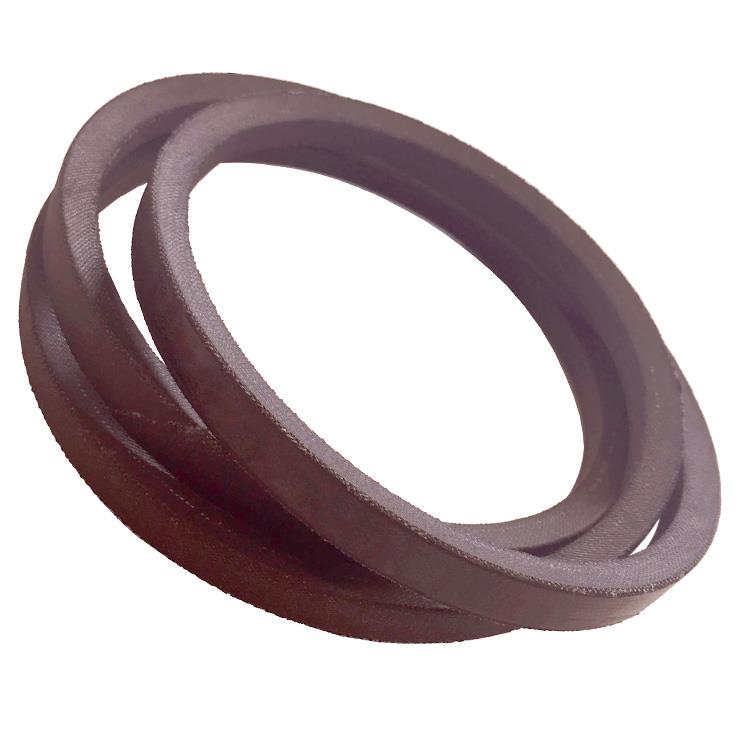

V Belt

V Belts are now known to be the basic belt for power transmission. They provide the best combination of traction, speed of movement, load of the bearings and lastly, maintain a long service life therefore making them very cost effective.

V Belts are a trapezium shape section reinforced on the outer edge with a heat-set, pre-stretched Polyester cord. The Polyester cording carries high horsepower loads and minimises stretch which means the V Belt will require fewer take up adjustments.

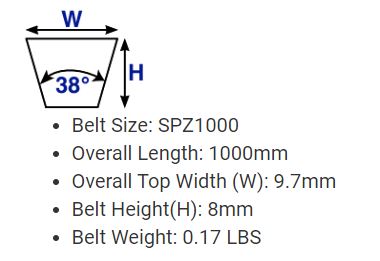

SPZ1000 belt is manufactured in accordance with ISO 4184 standards and is made using a premium quality natural rubber with polyester cords that are housed with a premium cotton-polyester blended cover. What else sets our metric SPZ-1000 belt above others is the high-capacity and performance ratings as well as its superior oil and heat resistance while also having static dissipating properties. The outside diameter (pitch length) of the SPZ1000 v-belt is 1000mm, designated with the last digits in the part number.

V Belt

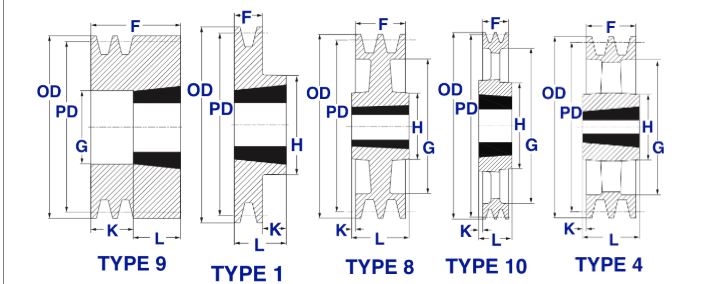

SPZ1000 BELT SHEAVES

V Belt

Sheave Size	Outside Diameter	Pitch Diameter	Type	Bushing Size	Maximum Bore	(F)	(G)	(K)	(L)	(H)	Weight (kG)
1SPZ50	54	50	9	1008	25	37	26	14	23	-	0.3
1SPZ56	60	56	9	1008	25	37	-	-	37	-	0.5
1SPZ60	64	60	9	1008	25	22	-	-	22	-	0.3
1SPZ63	67	63	1	1108	28	16	-	6	22	62	0.3
1SPZ67	71	67	1	1108	28	16	-	6	22	62	0.3
1SPZ71	75	71	1	1108	28	16	-	6	22	62	0.4
1SPZ75	79	75	1	1108	28	16	-	6	22	62	0.4
1SPZ80	84	80	1	1108	28	16	-	9	25	75	0.5
1SPZ85	89	85	1	1210	32	16	-	9	25	86	0.7
1SPZ90	94	90	1	1210	32	16	-	9	25	86	0.7
1SPZ95	99	95	1	1210	32	16	-	9	25	86	0.8
1SPZ100	104	100	1	1210	32	16	-	9	25	86	0.9
1SPZ106	110	106	1	1610	42	16	-	9	25	92	1
1SPZ112	116	112	1	1610	42	16	-	9	25	92	1.1
1SPZ118	122	118	1	1610	42	16	-	9	25	92	1.2
1SPZ125	129	125	1	1610	42	16	-	9	25	92	1.3
1SPZ132	136	132	1	1610	42	16	-	9	25	92	1.5
1SPZ140	144	140	1	1610	42	16	-	9	25	92	1.7
1SPZ150	154	150	1	1610	42	16	-	9	25	92	2
1SPZ160	164	160	1	1610	42	16	-	9	25	92	2.2
1SPZ170	174	170	1	1610	42	16	-	9	25	92	2.2
1SPZ180	184	180	8	1610	42	16	152	-	25	92	2.1
1SPZ190	194	190	8	1610	42	16	162	-	25	92	2.7
1SPZ200	204	200	10	2012	50	16	170	8	32	91	1.9
1SPZ212	216	212	10	2012	50	16	182	8	32	91	2.1
1SPZ224	228	224	10	2012	50	16	194	8	32	91	2.2
1SPZ236	240	236	10	2012	50	16	206	8	32	91	2.4
1SPZ250	254	250	10	2012	50	16	220	8	32	91	2.5
1SPZ280	289	280	10	2012	50	16	250	8	32	91	2.9
1SPZ315	319	315	10	2012	50	16	285	8	32	91	3.2
1SPZ355	359	355	10	2012	50	16	325	8	32	91	3.7
1SPZ400	404	400	4	2012	50	16	371	8	32	112	6.9
1SPZ450	454	450	4	2517	60	16	421	15	45	124	7.2
1SPZ500	504	500	4	2517	60	16	470	15	45	124	7.5
