Steel Round Gear Racks

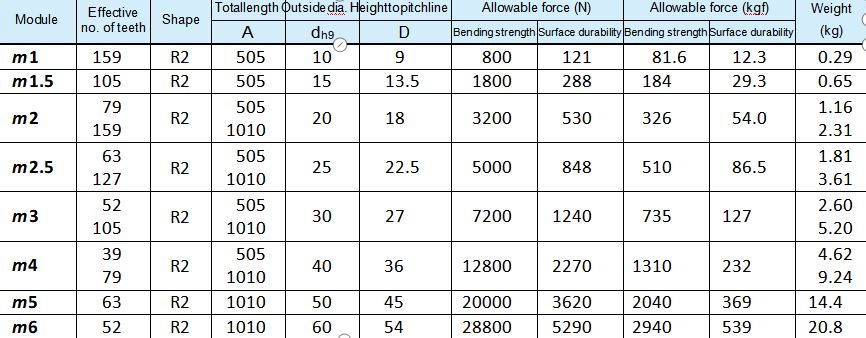

①The allowable forces shown in the table are the calculated values according to the assumed usage conditions.
② The backlash of racks differ depending on the size of the mating pinion. Please calculate the backlash from the backlash value of the mating pinion. Also,
③ Tolerance of “d” dimension of is h10.
| Product Details |
| Steel Round Gear Racks |
| Specifications | |
| Precision grade | grade 4 |
| Gear teeth | Standard full depth |
| Pressure angle | 20° |
| Material | S45C |
