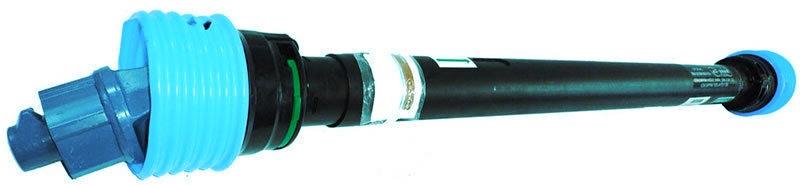

Pto Shaft With Free Wheel (RA) And Yoke 1” 3/8 Z6 EC Legislation
Pto shaft with free wheel (RA) and yoke 1” 3/8 Z6 EC legislation
Pto shaft with free wheel (RA) and yoke 1” 3/8 Z6 EC legislation
|
DIMENSIONE SIZE |
Ø H | CODE | 46 | 51 | 56 | 61 | 66 | 71 | 76 | 81 | 86 | 91 | 101 | 111 | 121 | 131 |
| LENGHTS (mm.) | ||||||||||||||||

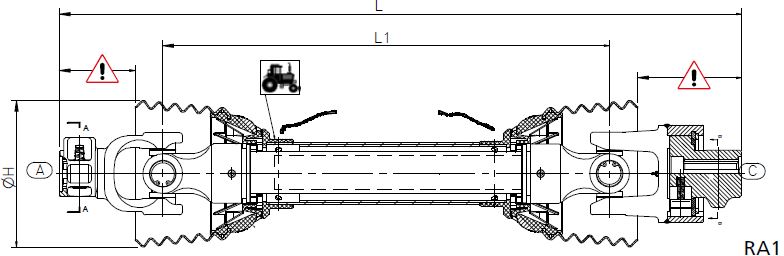

| RA1 C(61) | ||||||||||||||||
| 1 | 15330 |
L1 L |
460 | 510 | 560 | 610 | 660 | 710 | 760 | 810 | 860 | 910 | 1010 | 1110 | 1210 | 1310 |
| 678 | 728 | 778 | 828 | 878 | 928 | 978 | 1028 | 1078 | 1128 | 1228 | 1328 | 1428 | 1528 | |||
| 2 | 15330 |
L1 L |
460 | 510 | 560 | 610 | 660 | 710 | 760 | 810 | 860 | 910 | 1010 | 1110 | 1210 | 1310 |
| 689 | 739 | 789 | 839 | 889 | 939 | 989 | 1039 | 1089 | 1139 | 1239 | 1339 | 1439 | 1539 | |||
| 3 | 15330 |
L1 L |
460 | 510 | 560 | 610 | 660 | 710 | 760 | 810 | 860 | 910 | 1010 | 1110 | 1210 | 1310 |
| 704 | 754 | 804 | 854 | 904 | 954 | 1004 | 1054 | 1104 | 1154 | 1254 | 1354 | 1454 | 1554 | |||
| 4 | 15330 |
L1 L |
460 | 510 | 560 | 610 | 660 | 710 | 760 | 810 | 860 | 910 | 1010 | 1110 | 1210 | 1310 |
| 706 | 756 | 806 | 856 | 906 | 956 | 1006 | 1056 | 1106 | 1156 | 1256 | 1356 | 1456 | 1556 | |||
| 5 | 18800 |
L1 L |
460 | 510 | 560 | 610 | 660 | 710 | 760 | 810 | 860 | 910 | 1010 | 1110 | 1210 | 1310 |
| 712 | 762 | 812 | 862 | 912 | 962 | 1012 | 1062 | 1112 | 1162 | 1262 | 1362 | 1462 | 1562 | |||
| 6 | 18800 |
L1 L |
460 | 510 | 560 | 610 | 660 | 710 | 760 | 810 | 860 | 910 | 1010 | 1110 | 1210 | 1310 |
| 726 | 776 | 826 | 876 | 926 | 976 | 1026 | 1076 | 1126 | 1176 | 1276 | 1376 | 1476 | 1576 | |||

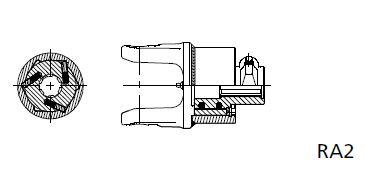

| RA2 C(62) | ||||||||||||||||
| 5 | 18800 |
L1 L |
460 | 510 | 560 | 610 | 660 | 710 | 760 | 810 | 860 | 910 | 1010 | 1110 | 1210 | 1310 |
| 731 | 781 | 831 | 881 | 931 | 981 | 1031 | 1081 | 1131 | 1181 | 1281 | 1381 | 1481 | 1581 | |||
| 6 | 18800 |
L1 L |
460 | 510 | 560 | 610 | 660 | 710 | 760 | 810 | 860 | 910 | 1010 | 1110 | 1210 | 1310 |
| 745 | 795 | 845 | 895 | 945 | 995 | 1045 | 1095 | 1145 | 1195 | 1295 | 1395 | 1495 | 1595 | |||
| 7 | 18800 |
L1 L |
460 | 510 | 560 | 610 | 660 | 710 | 760 | 810 | 860 | 910 | 1010 | 1110 | 1210 | 1310 |
| 744 | 794 | 844 | 894 | 944 | 994 | 1044 | 1094 | 1144 | 1194 | 1294 | 1394 | 1494 | 1594 | |||
| 8 | 18800 |
L1 L |
460 | 510 | 560 | 610 | 660 | 710 | 760 | 810 | 860 | 910 | 1010 | 1110 | 1210 | 1310 |
| 760 | 810 | 860 | 910 | 960 | 1010 | 1060 | 1110 | 1160 | 1210 | 1310 | 1410 | 1510 | 1610 | |||
