Product Description

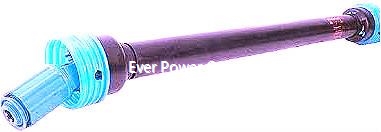

Pto shaft ratchet torque limiters (SW) and yoke 1” 3/8 Z6 EC legislation

The torque limiter is activated when the operating torque exceeds the setting value. Duringthe limiting phase, the device tr ansmits reduced power in pulses The elimination of the externalcause and the reduction of the PTO speed allows the normal power transmission to be

re-established When the limiter is activated, it is recommended to disconnect the PTO to avoidunnecessary wear and overheating

Type . Spline manufacture is divided into two

13/8"-Z6. 13/8"-221 For example SA110138S1. SA110121S1

Pto Shaft Ratchet Torque Limiters (SW) And Yoke 1” 3/8 Z6 EC Legislation

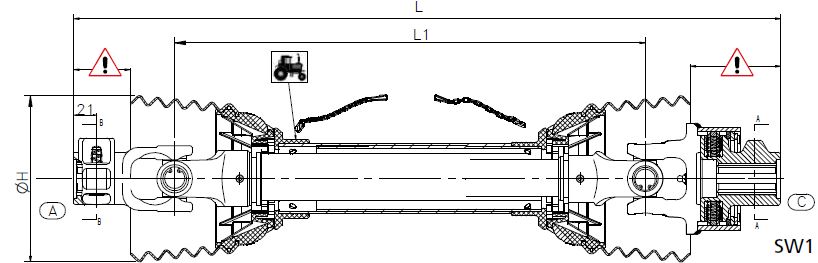

DIMENSIONE SIZE	Ø H	CODE	46	51	56	61	66	71	76	81	86	91	101	111	121	131
DIMENSIONE SIZE	Ø H	LENGHTS (mm.)
SW1 C(66)
1	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
1	15330	L	678	728	778	828	878	928	978	1028	1078	1128	1228	1328	1428	1528
2	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
2	15330	L	689	739	789	839	889	939	989	1039	1089	1139	1239	1339	1439	1539

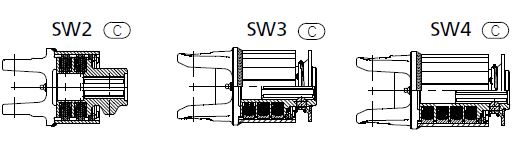

SW2 C(67)
1	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
1	15330	L	697	747	797	847	897	947	997	1047	1097	1147	1247	1347	1447	1547
2	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
2	15330	L	708	758	808	858	908	958	1008	1058	1108	1158	1258	1358	1458	1558
SW3 C(68)
2	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
2	15330	L	714	764	814	864	914	964	1014	1064	1114	1164	1264	1364	1464	1564
3	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
3	15330	L	721	771	821	871	921	971	1021	1071	1121	1171	1271	1371	1471	1571
4	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
4	15330	L	730	780	830	880	930	980	1030	1080	1130	1180	1280	1380	1480	1580
SW4 C(69)
4	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
4	15330	L	735	785	835	885	935	985	1035	1085	1135	1185	1285	1385	1485	1585
5	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
5	15330	L	742	792	842	892	942	992	1042	1092	1142	1192	1292	1392	1492	1592
