Pto Shaft Friction Torque Limiters With Conical Spring Washer (FFT) And Yoke 1” 3/8 Z6 EC Legislation

Pto shaft friction torque limiters with conical spring washer (FFT) and yoke 1” 3/8 Z6 EC legislation

Send Inquiry

Product Description

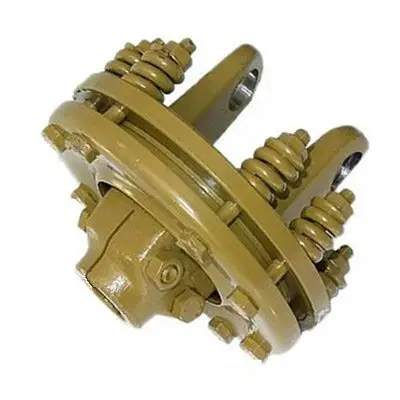

Pto shaft friction torque limiters with conical spring washer (FFT) and yoke 1” 3/8 Z6 EC legislation

DIMENSIONE SIZE	Ø H	CODICE CODE	46	51	56	61	66	71	76	81	86	91	101	111	121	131
		CODICE CODE
		LENGHTS (mm.)

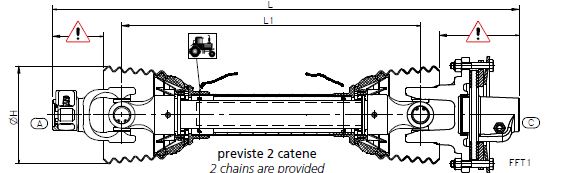

FFT1 C(80)
4	15330	L1 L	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
4	15330	L1 L	722	772	822	872	922	972	1022	1072	1122	1172	1272	1372	1472	1572
5	18800	L1 L	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
5	18800	L1 L	757	807	857	907	957	1007	1057	1107	1157	1207	1307	1407	1507	1607
6	18800	L1 L	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
6	18800	L1 L	767	817	867	917	967	1017	1067	1117	1167	1217	1317	1417	1517	1617

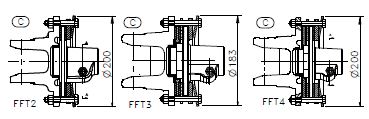

FFT2 C(81) (84) (85)
6	18800	L1 L	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
6	18800	L1 L	740	790	840	890	940	990	1040	1090	1140	1190	1290	1390	1490	1590
7	18800	L1 L	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
7	18800	L1 L	734	784	834	884	934	984	1034	1084	1134	1184	1284	1384	1484	1584
8	18800	L1 L	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
8	18800	L1 L	754	804	854	904	954	1004	1054	1104	1154	1204	1304	1404	1504	1604
FFT3 C(82)
5	18800	L1 L	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
5	18800	L1 L	746	796	846	896	946	996	1046	1096	1146	1196	1296	1396	1496	1596
6	18800	L1 L	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
6	18800	L1 L	761	811	861	911	961	1011	1061	1111	1161	1211	1311	1411	1511	1611
7	18800	L1 L	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
7	18800	L1 L	757	807	857	907	957	1007	1057	1107	1157	1207	1307	1407	1507	1607
8	18800	L1 L	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
8	18800	L1 L	773	823	873	923	973	1023	1073	1123	1173	1223	1323	1423	1523	1623
FFT4 C(83) (86) (87)
6	18800	L1 L	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
6	18800	L1 L	756	806	856	906	956	1006	1056	1106	1156	1206	1306	1406	1506	1606
7	18800	L1 L	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
7	18800	L1 L	752	802	852	902	952	1002	1052	1102	1152	1202	1302	1402	1502	1602
8	18800	L1 L	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
8	18800	L1 L	766	816	866	916	966	1016	1066	1116	1166	1216	1316	1416	1516	1616
