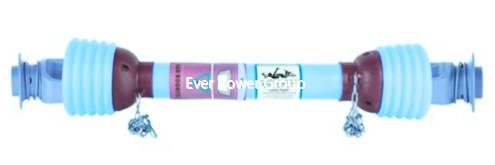

Pto Shaft And Standard Yoke 1”3/8 Z6 EC Legislation

Pto shaft and standard yoke 1”3/8 Z6 EC legislation

Send Inquiry

Product Description

Pto shaft and standard yoke 1”3/8 Z6 EC legislation

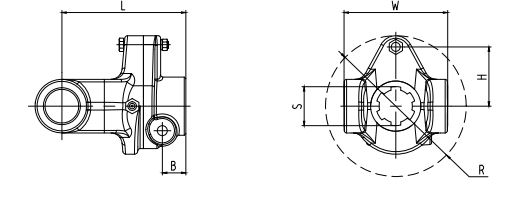

The torque limiter interrupts the power trarpmission when the torque exceeds the settingvalue, by shearing the bolt Transmission is restored by inserting a new bolt in the device.

Pto Shaft And Standard Yoke 1”3/8 Z6 EC Legislation

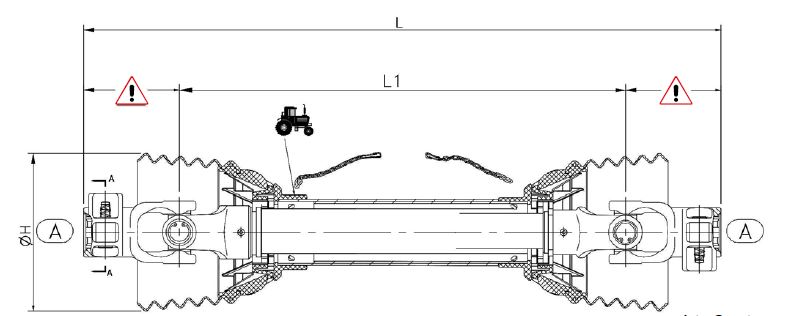

DIMENSIONE SIZE	Ø H	CODE	46	51	56	61	66	71	76	81	86	91	101	111	121	131
DIMENSIONE SIZE	Ø H	LENGHTS (mm.)
1	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
1	15330	L	646	696	746	796	846	896	946	996	1046	1096	1196	1296	1396	1496
2	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
2	15330	L	658	708	758	808	858	908	958	1008	1058	1108	1208	1308	1408	1508
3	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
3	15330	L	676	726	776	826	876	926	976	1026	1076	1126	1226	1326	1426	1526
4	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
4	15330	L	676	726	776	826	876	926	976	1026	1076	1126	1226	1326	1426	1526
5	18800	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
5	18800	L	682	732	782	832	882	932	982	1032	1082	1132	1232	1332	1432	1532
6	18800	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
6	18800	L	696	746	796	846	896	946	996	1046	1096	1146	1246	1346	1446	1546
7	18800	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
7	18800	L	692	742	792	842	892	942	992	1042	1092	1142	1242	1342	1442	1542
8	18800	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310
8	18800	L	708	758	808	858	908	958	1008	1058	1108	1158	1258	1358	1458	1558
