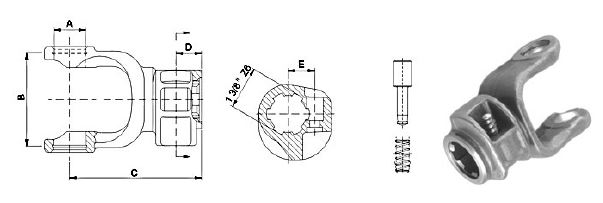

Outer yoke with push-pin for pto shaft

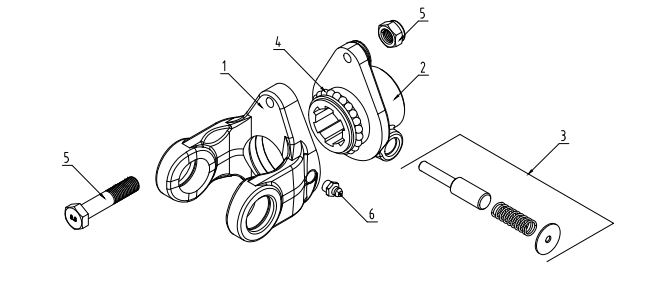

The torque limiter interrupts the power trarpmission when the torque exceeds the settingvalue, by shearing the bolt Transmission is restored by inserting a new bolt in the device.
| SIZE | CODE | A (mm.) | B (mm.) | C (mm.) | D (mm.) | E (mm.) |
| 1 | 1 | 22 | 54 | 93 | 21 | 22 |
| 2 | 1 | 238 | 613 | 99 | ||
| 3 | 1 | 27 | 70 | 104 | ||
| 4 | 1 | 27 | 746 | 108 | ||
| 5 | 1 | 302 | 80 | 111 | ||
| 6 | 1 | 302 | 92 | 118 | ||
| 7 | 1 | 35 | 94 | 116 | ||
| 8 | 1 | 35 | 1065 | 124 |
