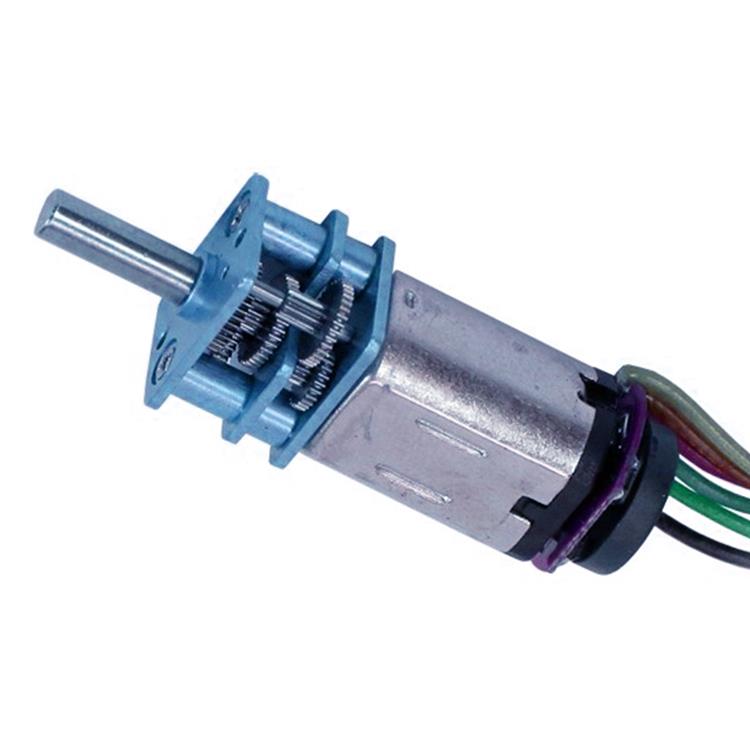

Micro Gear Motor

micro gear motor

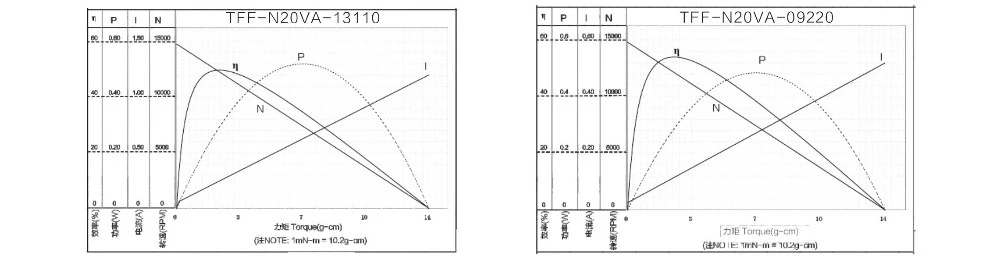

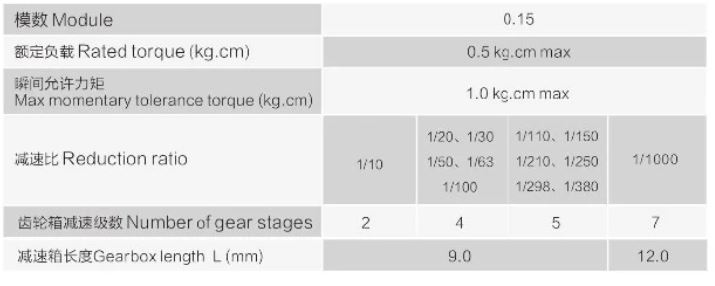

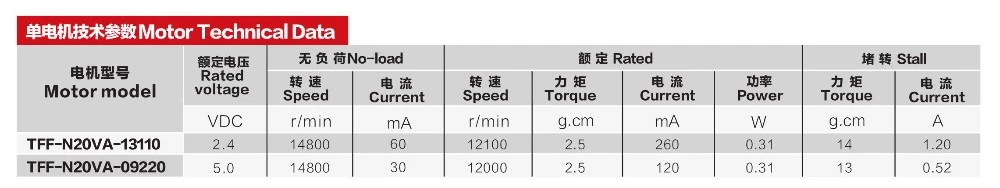

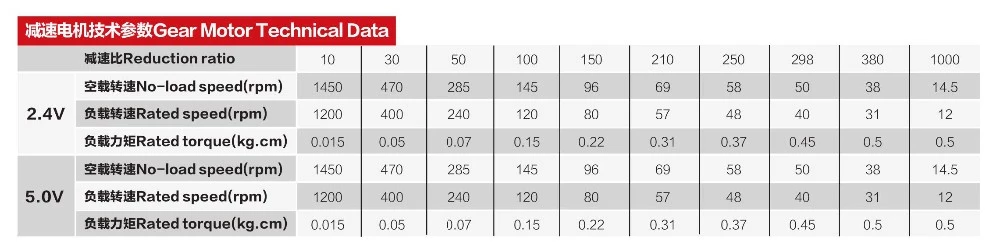

The Micro Gear agricultural Chain Motors by Raydafon provides hobbyists and robotics enthusiasts with an inexpensive solution with their motor requirements. The micro gear electric motor is capable of providing up to 1650g. cm of torque; with such a little size, these fantastic little motors hold their own against complex and demanding tasks. Have a look beneath the specifications tab to learn more on ordering and torque/rpm figures.

Also available is the MB7 Bracket, which is featured in one of the item images and may make mounting the gear motor a very simple task, requiring simply two screws to attach the assembly on your application.

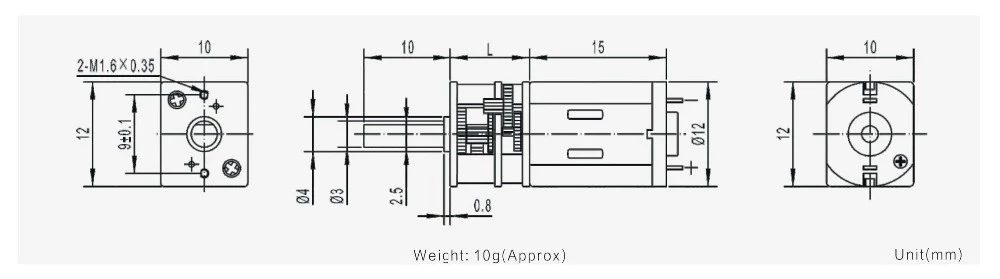

All of the micro metal gearmotors possess the same physical dimensions, so one version can be quickly swapped for another if your design requirements change.
Long (9mm), 3 mm-diameter D-shaped metallic output shaft.
4.5mm long, 1mm diameter back again shaft, ideal for optical encoders!
