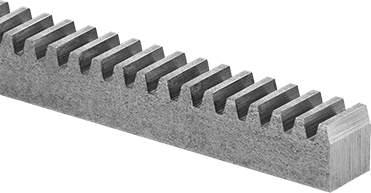

Linear Gearrack
It is made of high alloy steel for strength and durability. The 20-degree pressure angle (PA) provides a lower contact ratio between gears than a 14.5-degree pressure angle. The rack has up to 6' of linear movement, a 0.50" face width, an overall thickness of 0.50", and a 0.05" addendum. This gear rack is intended for use with pinion gears with the same pressure angle and diametral pitch (number of teeth per inch). It is suitable for use in a variety of commercial and industrial applications, such as machine tool tables, lift mechanisms, guide mechanisms, and shakers, among others.
linear gearrack
Gear rack for use with spur gear pinion (not included) to convert rotary motion into linear motion
High alloy steel for strength and durability
20 degree pressure angle for higher load-carrying capacity than 14.5 degree pressure angle
6' long, 20 teeth per foot
0.50" face width and 0.50" overall rack thickness
It is made of high alloy steel for strength and durability. The 20-degree pressure angle (PA) provides a lower contact ratio between gears than a 14.5-degree pressure angle. The rack has up to 6' of linear movement, a 0.50" face width, an overall thickness of 0.50", and a 0.05" addendum. This gear rack is intended for use with pinion gears with the same pressure angle and diametral pitch (number of teeth per inch). It is suitable for use in a variety of commercial and industrial applications, such as machine tool tables, lift mechanisms, guide mechanisms, and shakers, among others.
| Pitch | Lg. | Pitch Ht. | Ht. |
Face Wd. |
Material |
Teeth Heat Treatment |
|
| 64 | 11" | 0.464" | 1/2" | 1/4" | 416 Stainless Steel | Not Hardened | 6832K73 |
| 64 | 2ft. | 0.11" | 1/8" | 1/8" | Brass | __ | 7854K11 |
| 48 | 18" | 0.459" | 1/2" | 1/4" | 416 Stainless Steel | Not Hardened | 6832K74 |
| 48 | 2ft. | 0.104" | 1/8" | 1/8" | Brass | __ | 7854K12 |
| 32 | 18" | 0.449" | 1/2" | 1/4" | 416 Stainless Steel | Not Hardened | 6832K75 |
| 32 | 2ft. | 0.156" | 3/16" | 3/16" | Brass | __ | 7854K13 |
| 24 | 18" | 0.438" | 1/2" | 1/4" | 416 Stainless Steel | Not Hardened | 6832K76 |
| 24 | 2ft. | 0.208" | 1/4" | 1/4" | Brass | __ | 7854K15 |
| 20 | 2ft. | 0.45" | 1/2" | 1/2" | 1018 Carbon Steel | Not Hardened | 5174T1 |
| 20 | 4ft. | 0.45" | 1/2" | 1/2" | 1018 Carbon Steel | Not Hardened | 5174T11 |
| 20 | 6ft. | 0.45" | 1/2" | 1/2" | 1018 Carbon Steel | Not Hardened | 5174T21 |
| 16 | 2ft. | 0.687" | 3/4" | 3/4" | 1018 Carbon Steel | Not Hardened | 5174T2 |
| 16 | 4ft. | 0.687" | 3/4" | 3/4" | 1018 Carbon Steel | Not Hardened | 5174T12 |
| 16 | 6ft. | 0.687" | 3/4" | 3/4" | 1018 Carbon Steel | Not Hardened | 5174T22 |
| 12 | 2ft. | 0.917" | 1" | 1" | 1018 Carbon Steel | Not Hardened | 5174T3 |
| 12 | 4ft. | 0.917" | 1" | 1" | 1018 Carbon Steel | Not Hardened | 5174T13 |
| 12 | 6ft. | 0.917" | 1" | 1" | 1018 Carbon Steel | Not Hardened | 5174T23 |
| 10 | 2ft. | 1.15" | 1 1/4" | 1 1/4" | 1018 Carbon Steel | Not Hardened | 5174T5 |
| 10 | 4ft. | 1.15" | 1 1/4" | 1 1/4" | 1018 Carbon Steel | Not Hardened | 5174T15 |
| 10 | 6ft. | 1.15" | 1 1/4" | 1 1/4" | 1018 Carbon Steel | Not Hardened | 5174T25 |
| 8 | 2ft. | 1.375" | 1 1/2" | 1 1/2" | 1018 Carbon Steel | Not Hardened | 5174T4 |
| 8 | 4ft. | 1.375" | 1 1/2" | 1 1/2" | 1018 Carbon Steel | Not Hardened | 5174T14 |
| 8 | 6ft. | 1.375" | 1 1/2" | 1 1/2" | 1018 Carbon Steel | Not Hardened | 5174T24 |
