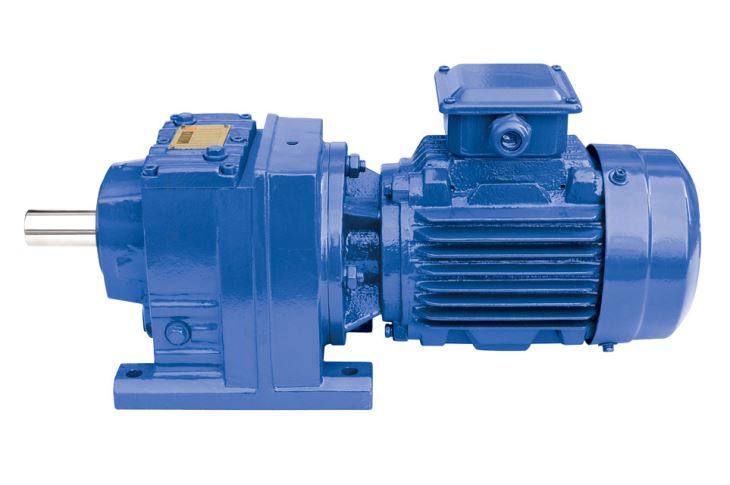

Gear Reducer

Gear reducer is generally used for transmission equipment with low speed and high torque. The ordinary reducer of the motor will also have several pairs of identical gears to achieve the desired deceleration effect. The ratio of the number of teeth of the large and small gears is the transmission ratio. With the continuous development of the reducer industry, more and more enterprises have applied the reducer.

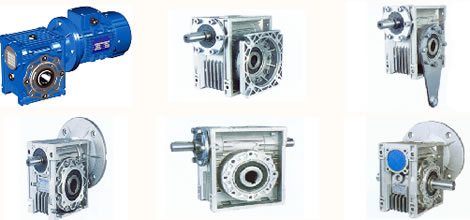

RV series worm gear reducer box

Performance characteristics

◆ vertical output, compact structure, high-precision worm gear drive to ensure that fly under the smooth working of low noise, long life.

◆ installation: at the end of the foot to install, the installation of the hollow shaft, flange installation, torque arm installation, the installation of the small flange.

◆ Input Method: Direct motor, motor or a belt connected to input shaft, input flange connection.

◆ output mode: Hollow shaft output or solid output shaft, with an average efficiency of 80%.

◆ two-stage combination of the speed ratio can be greater

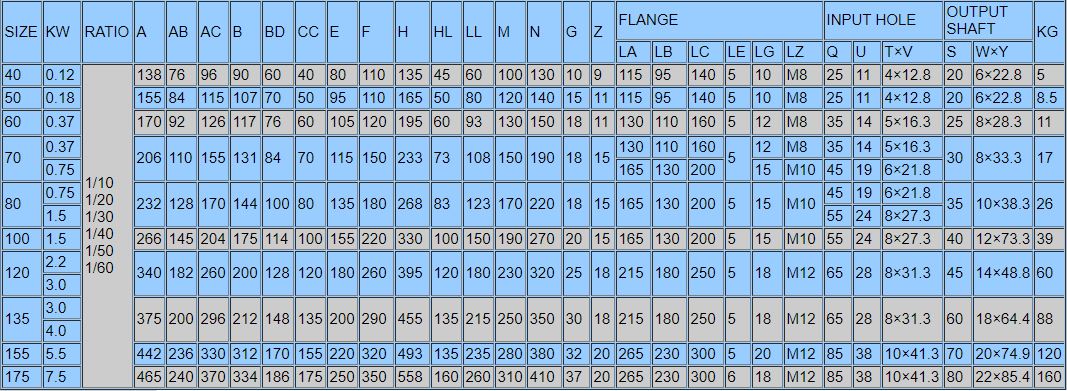

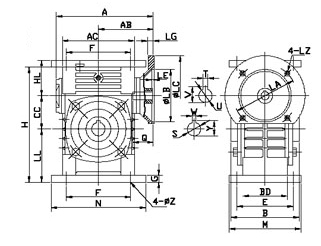

Technical parameters

Ratio range: 5 ~ 5500 basic, three-level combined reach more than 32,625

Torque range: 2 ~ 300 Nm

Power range: 0.045 ~ 22kW

WDKA WDKS
