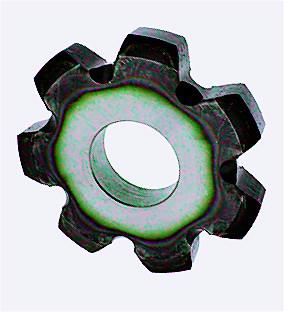

Drive Sprocket for #62 DETACHABLE CHAIN
| sprocket Size | Tooth Count | Style | Pitch Diameter | Hub Diameter | Length Thru Bore | Maximum Bore | Weight |
| 62C5 | 5 | C | 2.81" | 1.38" | 1.25" | 0.75" | 1.5 LBS |
| 62C6 | 6 | C | 3.32" | 1.75" | 1.25" | 0.94" | 3.0 LBS |
| 62C7 | 7 | C | 3.82" | 2.50" | 2.00" | 1.62" | 2.0 LBS |
| 62C8 | 8 | C | 4.32" | 3.00" | 2.00" | 1.81" | 4.0 LBS |
| 62C9 | 9 | C | 4.84" | 3.00" | 2.00" | 1.81" | 5.0 LBS |
| 62C10 | 10 | C | 5.35" | 4.00" | 3.00" | 2.50" | 9.0 LBS |
| 62C11 | 11 | C | 5.87" | 4.00" | 3.00" | 2.50" | 9.0 LBS |
| 62C12 | 12 | C | 6.39" | 4.75" | 3.50" | 2.50" | 7.0 LBS |
| 62C13 | 13 | C | 6.91" | 4.75" | 3.50" | 3.00" | 14.0 LBS |
| 62C14 | 14 | C | 7.43" | 4.75" | 3.50" | 3.00" | 24.0 LBS |
| 62C15 | 15 | C | 7.96" | 5.00" | 3.50" | 3.50" | 26.0 LBS |
| 62C16 | 16 | C | 8.48" | 5.00" | 3.50" | 3.50" | 25.0 LBS |
| 62C17 | 17 | C | 9.00" | 5.00" | 3.50" | 3.50" | 26.0 LBS |
| 62C18 | 18 | C | 9.53" | 5.00" | 3.50" | 3.50" | 28.0 LBS |
| 62C19 | 19 | C | 10.05" | 5.00" | 3.50" | 3.50" | 22.0 LBS |
| 62C20 | 20 | C | 10.57" | 5.50" | 4.00" | 4.00" | 24.0 LBS |
| 62C21 | 21 | C | 11.10" | 5.50" | 4.00" | 4.00" | 39.0 LBS |
| 62C22 | 22 | C | 11.63" | 5.50" | 4.00" | 4.00" | 27.0 LBS |
| 62C23 | 23 | C | 12.15" | 5.50" | 4.00" | 4.00" | 30.0 LBS |
| 62C24 | 24 | C | 12.67" | 5.50" | 4.00" | 4.00" | 36.0 LBS |
| 62C25 | 25 | C | 13.20" | 5.50" | 4.50" | 4.00" | 36.0 LBS |
| 62C26 | 26 | C | 13.72" | 5.50" | 4.50" | 4.00" | 36.0 LBS |
| 62C27 | 27 | C | 14.25" | 5.50" | 4.50" | 4.00" | 58.0 LBS |
| 62C28 | 28 | C | 14.77" | 5.50" | 4.50" | 4.00" | 60.0 LBS |
| 62C29 | 29 | C | 15.30" | 5.50" | 4.50" | 4.00" | 31.6 LBS |
| 62C30 | 30 | C | 15.82" | 6.00" | 4.50" | 4.50" | 44.0 LBS |
| 62C32 | 32 | C | 16.88" | 6.00" | 4.50" | 4.50" | 48.0 LBS |
| 62C33 | 33 | C | 17.44" | 6.00" | 4.50" | 4.50" | 50.0 LBS |
| 62C34 | 34 | C | 17.93" | 6.00" | 4.50" | 4.50" | 77.0 LBS |
| 62C36 | 36 | C | 18.98" | 6.00" | 4.50" | 4.50" | 90.0 LBS |
| 62C38 | 38 | C | 20.03" | 6.00" | 5.00" | 4.50" | 93.0 LBS |
| 62C39 | 39 | C | 20.55" | 6.00" | 5.00" | 4.50" | 61.0 LBS |
| 62C40 | 40 | C | 21.07" | 6.00" | 5.00" | 4.50" | 40.2 LBS |
| 62C41 | 41 | C | 21.61" | 6.00" | 5.00" | 4.50" | 65.0 LBS |
| 62C42 | 42 | C | 22.13" | 6.00" | 5.00" | 4.50" | 72.0 LBS |
| 62C43 | 43 | C | 22.66" | 8.00" | 5.50" | 6.00" | 74.0 LBS |
| 62C45 | 45 | C | 23.71" | 8.00" | 5.50" | 6.00" | 77.0 LBS |
| 62C46 | 46 | C | 24.24" | 8.00" | 5.50" | 6.00" | 80.0 LBS |
| 62C47 | 47 | C | 24.77" | 8.00" | 5.50" | 6.00" | 48.6 LBS |
| 62C48 | 48 | C | 25.29" | 8.00" | 5.50" | 6.00" | 83.0 LBS |
| 62C49 | 49 | C | 25.82" | 8.00" | 5.50" | 6.00" | 84.0 LBS |
| 62C54 | 54 | C | 28.45" | 8.00" | 5.50" | 6.00" | 93.0 LBS |
| 62C60 | 60 | C | 31.60" | 8.00" | 5.50" | 6.00" | 71.0 LBS |
| Steel 62 Detachable Chain Sprockets | |||||||
| Sprocket Size | Tooth Count | Style | Pitch Diameter | Hub Diameter | Length Thru Bore | Stock Bore | Weight |
| 62C12 | 12 | C | 6.39" | 4.25" | 3.125" | 0.938" | 15.8 LBS |
| 62C13 | 13 | C | 6.91" | 4.75" | 3" | 0.938" | 19.4 LBS |
| 62C14 | 14 | C | 7.43" | 4.75" | 3" | 0.938" | 20.6 LBS |
| 62C15 | 15 | C | 7.96" | 4.75 | 3" | 0.938" | 22.0 LBS |
| 62C17 | 17 | C | 9.00" | 4.75 | 3" | 0.938" | 24.0 LBS |
| 62C19 | 19 | C | 10.05" | 4.75 | 3" | 0.938" | 28.0 LBS |
| 62C20 | 20 | C | 10.57" | 4.75 | 3" | 0.938" | 30.0 LBS |
| 62C24 | 24 | C | 12.67" | 5.5" | 4.375" | 1.25" | 49.0 LBS |
| 62C26 | 26 | C | 13.72" | 5.5" | 4.375" | 1.25" | 53.0 LBS |
| 62C30 | 30 | C | 15.82" | 5.5" | 4.375" | 1.25" | 65.0 LBS |
| 62C36 | 36 | C | 18.98" | 5.5" | 4.375" | 1.25" | 82.0 LBS |
| 62C54 | 24 | C | 28.45" | 5.5" | 4.375" | 1.25" | 125.0 LBS |
| 62C60 | 60 | C | 31.6" | 5.5" | 4.375" | 1.25" | 138.0 LBS |
| 62A12 | 12 | A | 6.39" | -- | -- | 0.938" | 6.8 LBS |
| 62A13 | 13 | A | 6.91" | -- | -- | 0.938" | 8.0 LBS |
| 62A14 | 14 | A | 7.43" | -- | -- | 0.938" | 9.2 LBS |
| 62A15 | 15 | A | 7.96" | -- | -- | 0.938" | 10.5 LBS |
| 62A17 | 17 | A | 9.00" | -- | -- | 0.938" | 12.0 LBS |
| 62A19 | 19 | A | 10.05" | -- | -- | 0.938" | 16.8 LBS |
| 62A20 | 20 | A | 10.57" | -- | -- | 0.938" | 18.6 LBS |
| 62A24 | 24 | A | 12.67" | -- | -- | 1.25" | 26.0 LBS |
| 62A26 | 26 | A | 13.72" | -- | -- | 1.25" | 30.0 LBS |
| 62A30 | 30 | A | 15.82" | -- | -- | 1.25" | 42.0 LBS |
| 62A36 | 36 | A | 18.98" | -- | -- | 1.25" | 59.0 LBS |
| 62A54 | 54 | A | 28.45" | -- | -- | 1.25" | 135.0 LBS |
| 62A60 | 60 | A | 31.6" | -- | -- | 1.25" | 169.0 LBS |
| Weld On Hub 62 Detachable Chain Sprockets | |||||||
| Sprocket Size | Tooth Count | Bore (A) | Root Diameter | Outside Diameter | Hub Type | Width (B) | Weight |
| 62W6 | 6 | 1-5/8" | 2.63" | 3-7/8" | W | 11/16" | 0.94 LBS |
| 62W7 | 7 | 1-5/8" | 3.13" | 4-3/8" | W | 11/16" | 1.44 LBS |
| 62X8 | 8 | 2" | 3.64" | 4-7/8" | X | 11/16" | 1.83 LBS |
| 62X9 | 9 | 2" | 4.15" | 5-3/8" | X | 11/16" | 2.38 LBS |
| 62X10 | 10 | 2" | 4.66" | 5-7/8" | X | 11/16" | 3.13 LBS |
| 62X11 | 11 | 2" | 5.18" | 6-1/2" | X | 11/16" | 3.94 LBS |
| 62X12 | 12 | 2" | 5.70" | 7" | X | 11/16" | 4.83 LBS |
| 62Y13 | 13 | 2-3/4" | 6.21" | 7-1/2" | Y | 11/16" | 5.29 LBS |
| 62Y14 | 14 | 2-3/4" | 6.73" | 8" | Y | 11/16" | 6.33 LBS |
| 62Y15 | 15 | 2-3/4" | 7.25" | 8-1/2" | Y | 11/16" | 7.42 LBS |
