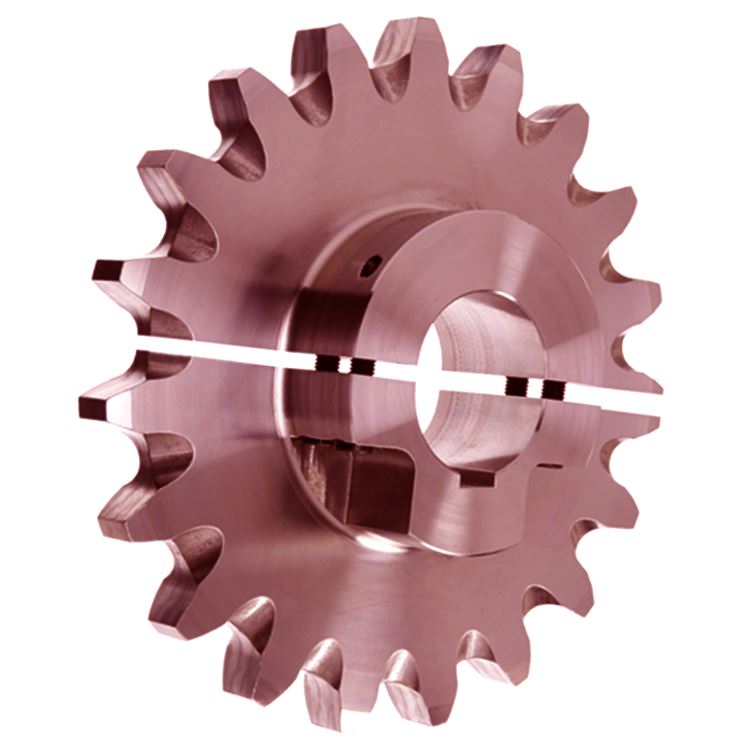

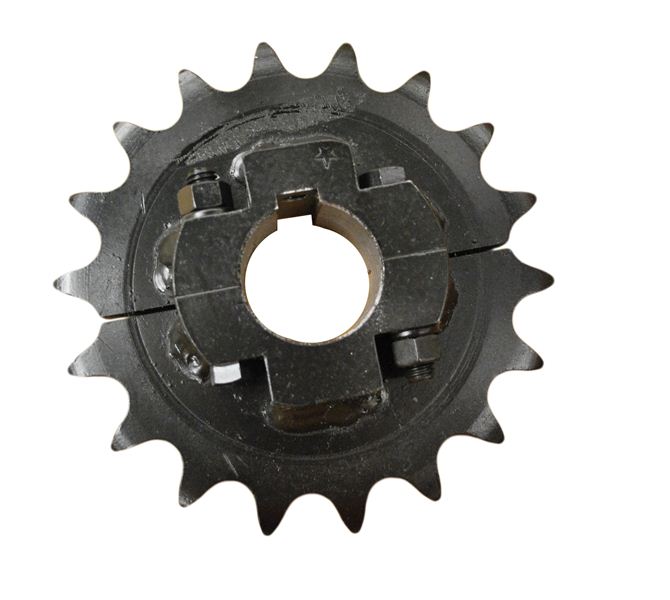

Drag Chain Sprockets
The chain sprocket widely used in conveying equipment to chain as transmission(Scraper conveyor,Chain elevator),and conveying sprocket teeth shape is different from general transfer chain.Pitch should be consistent with the conveyor.| Type | Chain Sprockets |
| Material | Mild Steel, Steel, Stainless Steel, Iron |
| Condition | New |
| Temperature Bearing | 40 to 130 deg C |
| Tolerance | +/-0.06, +/-0.08, +/-0.10 |
| Finishing | Powder Coated, Galvanised, Painted, Polishing, Black, Hot-Dip, Zinc Plated |
| Item # | Bore | Hub O. D. | Hub Length | Bolts | Weight |
| S-1B | 0.750 to 1.500 in | 3.125 in | N/A | 3/8 x 2 1/4 in | 1.800 lb |
| S-2B | 1.375 to 2.250 in | 4.375 in | N/A | 1/2 x 3 in | 4.000 lb |
| S-3B | 2.000 to 3.000 in | 6.000 in | N/A | 5/8 x 4 1/2 in | 8.400 lb |
| S-4B | 2.750 to 4.000 in | 7.625 in | N/A | 3/4 x 5 1/2 in | 14.400 lb |
| S-5B | 3.750 to 5.000 in | 9.250 in | N/A | 1 x 6 in | 27.700 lb |
| S-6B | 4.750 to 6.000 in | 10.250 in | N/A | 1 x 6 1/2 in | 35.400 lb |
