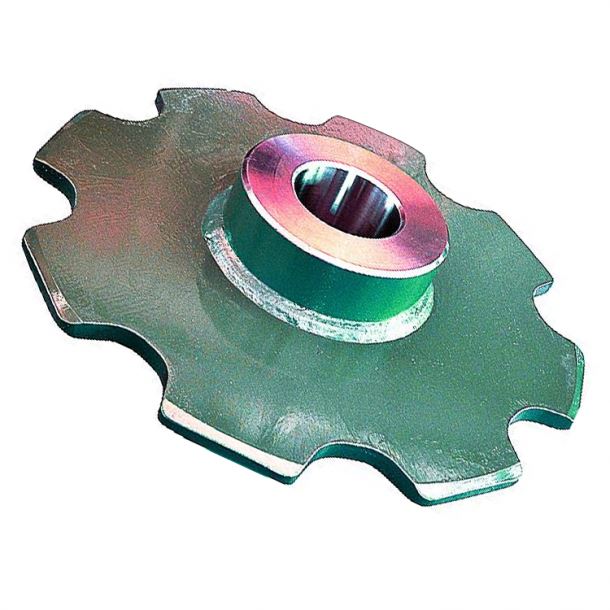

Conveyor Sprocket

Available with us is an extensive array of Main Conveyor Sprocket, which are precision engineered using optimum quality raw material that is procured from the most authentic vendors of the industry. Industry laid parameters are followed for the fabrication of this range to ensure dispatch of an error free range.

Send Inquiry

Product Description

conveyor sprocket

Product Description

High tensile strength
Sturdiness
Longer service life
Low maintenance

Conveyor Sprocket

Conveyor Sprocket for F Roller Chain

Chain No.	No. of Teeth	Basic Dimensions/Shape				Commo n Basic Specification Dimensions






		Pitch Circle Diameter Dp	Outer Diameter Do	Tooth Width T	Tooth Section Shape	Prepared Hole Diameter d	Shaft Diameter Range d (MAX)	Boss Diameter DH	Total Width DL	Center Distance L (CW-type)	Mass kg




	6	150	158			20	50	73	54	27	2.6
K3075F	8	196	209	9	S1	20	55	83	59	29.5	4.1
	10	242.7	259			20	60	93	64	32	6
	12	289.8	308			20	60	93	64	32	7.4
	6	200	206		S2 S2 S1	20	55	83	59	29.5	4.2
K3100F	8	261.3	272	9	S1	20	60	93	64	32	6.5
	10	323.6	336			20	65	98	69	34.5	9.2
	12	386.4	401			20	65	98	69	34.5	11.6
	6	200	205			26	75	107	80	40	7.3
K5100F	8	261.3	272	12	S1	26	75	107	80	40	9.4
	10	323.6	340			26	80	117	88	44	13.5
	12	386.4	405			26	85	127	98	49	18.8
	6	300	304			26	80	117	88	44	12.4
K5150F	8	392	402	12	S2	26	85	127	98	49	19.2
	10	485.4	500			26	95	137	110	55	27.9
	12	579.6	596			26	95	137	110	55	35.2
	6	300	309		S2 S2 S2	30	95	137	113	56.5	18.9
K10150F	8	392	408	16	S1	30	100	147	116	58	26.6
	10	485.4	506			30	110	157	126	63	37.5
	12	579.6	601			30
