Conveyor Sprocket For F Roller Chains

Conveyor Sprocket for F Roller Chains

Send Inquiry

Product Description

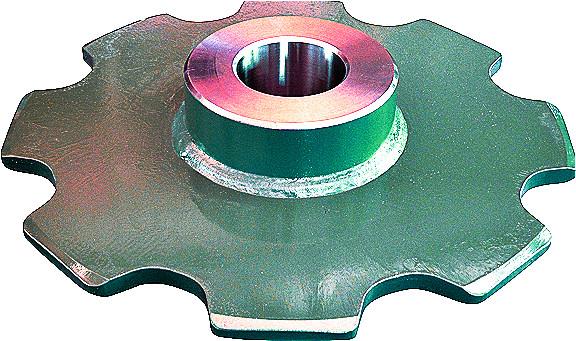

Conveyor Sprocket for F Roller Chains

We're professional Conveyor Sprocket For F Roller Chains Chains manufacturers and suppliers in China, supplying the best wholesale service. Feel free to buy durable Conveyor Sprocket For F Roller Chains Chains made in China here from our factory.

Chain No.	No. of Teeth	Basic Dimensions/Shape				Common Basic Specification Dimensions
		Pitch Circle Diameter Dp	Outer Diameter Do	Tooth Width T	Tooth Section Shape	Prepared Hole Diameter d	Shaft Diameter Range d (MAX)	Boss Diameter DH	Total Width DL	Center Distance L (CW-type)	Mass kg
	6	150	158			20	50	73	54	27	2.6
K3075F	8	196	209	9	S1	20	55	83	59	29.5	4.1
	10	242.7	259			20	60	93	64	32	6
	12	289.8	308			20	60	93	64	32	7.4
	6	200	206		S2 S2 S1	20	55	83	59	29.5	4.2
K3100F	8	261.3	272	9	S1	20	60	93	64	32	6.5
	10	323.6	336			20	65	98	69	34.5	9.2
	12	386.4	401			20	65	98	69	34.5	11.6
	6	200	205			26	75	107	80	40	7.3
K5100F	8	261.3	272	12	S1	26	75	107	80	40	9.4
	10	323.6	340			26	80	117	88	44	13.5
	12	386.4	405			26	85	127	98	49	18.8
	6	300	304			26	80	117	88	44	12.4
K5150F	8	392	402	12	S2	26	85	127	98	49	19.2
	10	485.4	500			26	95	137	110	55	27.9
	12	579.6	596			26	95	137	110	55	35.2
	6	300	309		S2 S2 S2	30	95	137	113	56.5	18.9
K10150F	8	392	408	16	S1	30	100	147	116	58	26.6
	10	485.4	506			30	110	157	126	63	37.5
	12	579.6	601			30	115	167	137	68.5	50.8
