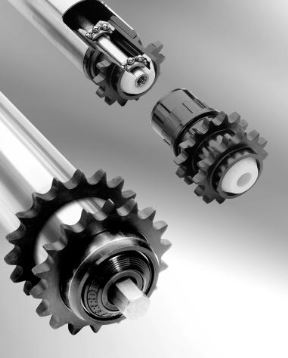

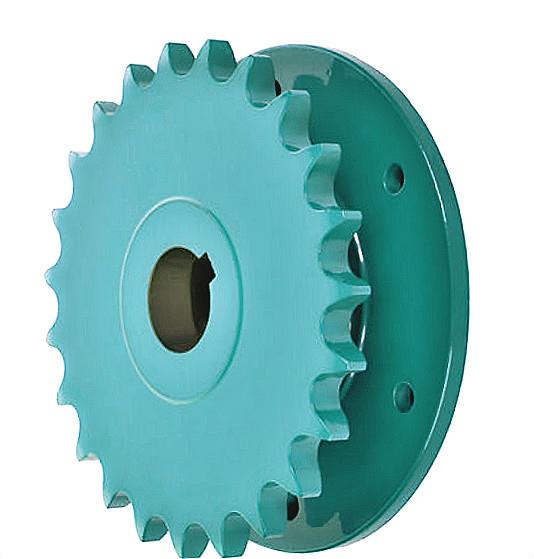

Sprockets for Conveyor Roller Chains
Conveyor roller system need many sprockets with falnge made by slotting machines
We are one of the major supplier for roller producers like Interroll etc
(P.S. Interroll is brandname belong to Company interroll we do not produce roller only the sprockets fit for interroll,
Any purchase for interroll brand, please go directly to Interrroll)
# 378RXC10, SPROCKET NUMBER 378RX
| Specifications | |
| Pitch | 1.654 in |
| Roller Diameter | 0.875 in |
| Plate Thickness | 0.750 in |
| No. Teeth | 10 |
| Stock Bore | 1.250 in |
| Max. Bore | 1.940 in |
| Pitch Diameter | 5.352 in |
| Hub Diameter | 3.000 in |
| LTB | 2.250 in |
| Approx. Weight | 8.000 lb |
| Style | Type C |
| Use | For Tsubaki Chain Numbers 378RX, 378R, 162R, 462R |
# 81XC8, SPROCKET NUMBER 81X
| Specifications | |
| Pitch | 2.609 in |
| Roller Diameter | 0.906 in |
| Plate Thickness | 0.875 in |
| No. Teeth | 8 |
| Stock Bore | 0.938 in |
| Pitch Diameter | 6.818 in |
| Hub Diameters (A/B) | 4.750/4.500 in |
| LTB | 3.125 in |
| Approx. Weight | 14.000 lb |
| Style | Type C |
| Use | For Tsubaki Chain Number 81X |
# 81XC11, SPROCKET NUMBER 81X
| Specifications | |
| Pitch | 2.609 in |
| Roller Diameter | 0.906 in |
| Plate Thickness | 0.875 in |
| No. Teeth | 11 |
| Stock Bore | 1.250 in |
| Pitch Diameter | 9.261 in |
| Hub Diameters (A/B) | 5.250/5.000 in |
| LTB | 3.875 in |
| Approx. Weight | 25.000 lb |
| Style | Type C |
| Use | For Tsubaki Chain Number 81X |
