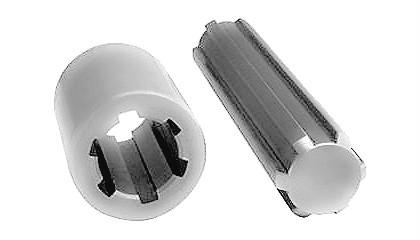

Spline Bushings

We're professional spline bushings and spline split collar manufacturers and suppliers in China, supplying the best wholesale service. Feel free to buy durable spline bushings and spline split collar made in China here from our factory.

Metric Spline Bushings manufactured to DIN ISO 14-A (DIN 5463-A)

Material:

1)SteelST 52.3 - non alloy structured steel (standard)

2)Bronze RG 7 (GC-Cu Sn 5/7 Zn Pb)

3)Stainless Steel 1.4305

Spline Bushings And Spline Split Collar

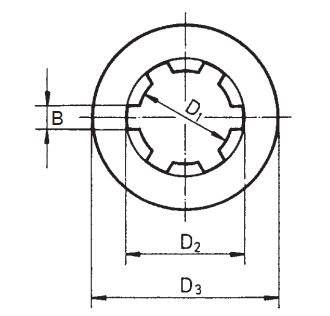

SPLINES	ØD2	ØD1	B	ØA	LENGTH
6	14	11	3	20	40
6	14	11	3	30	40
6	16	13	3.5	28	45
6	16	13	3.5	35	40
6	20	16	4	32	45
6	20	16	4	40	40
6	22	18	5	42	40
6	25	21	5	38	60
6	25	21	5	40	55
6	25	21	5	45	40
6	28	23	6	50	60
6	32	26	6	52	60
6	32	26	6	60	60
6	34	28	7	70	60
8	38	32	6	60	60
8	38	32	6	75	60
8	42	36	7	80	60
8	48	42	8	65	70
8	48	42	8	80	70
8	48	42	8	90	60
8	54	46	9	90	60

Spline Bushings And Spline Split Collar

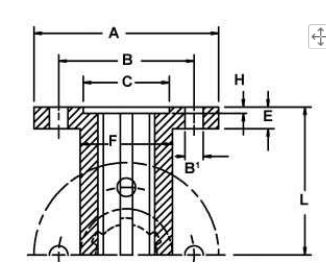

PROFILE	ØA	ØB	ØB1	ØCH7	ØFh8	E	H	L
SPLINE 11 x 14	42	28	4.3	20	20	8	3	35
SPLINE 13 x 16	50	36	4.3	22	25	8	3	40
SPLINE 16 x 20	52	38	5.3	25	28	10	3	40
SPLINE 21 x 25	62	48	6.4	35	34	10	3.5	50
SPLINE 26 x 32	70	56	6.4	40	42	10	3.5	60
SPLINE 32 x 38	80	65	8.5	50	50	12	3.5	60
SPLINE 42 x 48	95	75	10.5	60	60	16	4	80

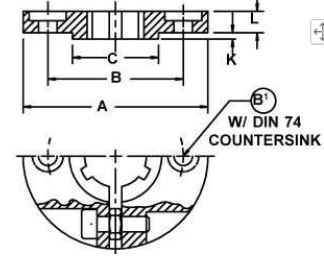

Spline split collar

Spline Bushings And Spline Split Collar

PROFILE	ØA	ØB	ØB1	ØCH7	L	K
SPLINE 11 x 14	42	28	4.3	20	12	2
SPLINE 13 x 16	50	36	4.3	22	12	2
SPLINE 16 x 20	52	38	5.3	25	14	2
SPLINE 21 x 25	62	48	6.4	35	14	3
SPLINE 26 x 32	70	56	6.4	40	15	3
SPLINE 32 x 38	80	65	8.5	50	18	3
SPLINE 42 x 48	95	75	10.5	60	22	3

Spline Bushings And Spline Split Collar

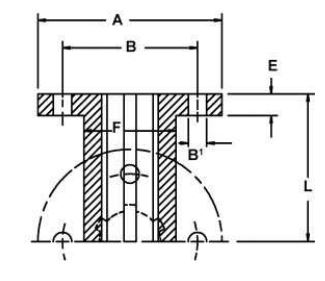

PROFILE	ØA	ØB	ØB1	E	ØFh7	L
SPLINE 11 x 14	41	30	4.3	8	22	30
SPLINE 13 x 16	43	32	4.3	8	24	30
SPLINE 16 x 20	52	38	5.3	9	28	40
SPLINE 18 x 22	60	46	5.3	9	32	50
SPLINE 21 x 25	62	48	6.4	10	34	50
SPLINE 23 x 28	68	54	6.4	10	40	60
SPLINE 26 x 32	70	56	6.4	10	42	60
SPLINE 28 x 34	78	63	8.4	12	48	70
SPLINE 32 x 38	80	65	8.4	12	50	70
SPLINE 36 x 42	93	73	8.4	14	58	80
SPLINE 42 x 48	95	75	10.5	16	60	80
SPLINE 46 x 54	99	80	10.5	16	65	80
