SMR(Y) XG Reducer

• Technical Data

Features

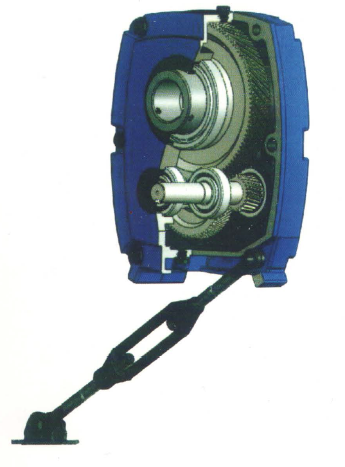

SMR(Y)Reducer Specification

EP Metric Shaft Mount Reducer are metric in design

throughout and have power ratings to AGMA standard.Shaft

Mount Reducers provide a very convenient method of reducing

speed,since it is mounted directly on the driven shaft

instead of requiring foundations of its own.

It eliminates the use of one,and sometimes two,flexible

couplings and externals belt take-up arrangements,

A torque-arm anchors the reducer and provides quick,easy

adjustment of the Wedge belts by means of its turnbuckle.

Fixed Star Shaft Mount Reducers are manufactured in eight

gear case sizes,nominal gear ratios are 5:1,13:1 and 20:1.

Fixed Star SMRY are manufactured in eight gear case sizes,

from size 2 to size 9,maximum power up to 150 HP ,nominal

gear ratios are1 5:1and 25:1.

A very wide choice of final driven speeds can be determined

by use of an appropriate input Wedge Belt Drive.

The units will normally be oil lubricated,but they are

equally suitable for long life synthetic lubricants.

XG Reducer Specification

The characteristics are as follows:

1)Use low-carbon alloyed steel cementation processing completely.

2)The gear and the gear shaft precision is high.

3)The volume small,the torque is big.

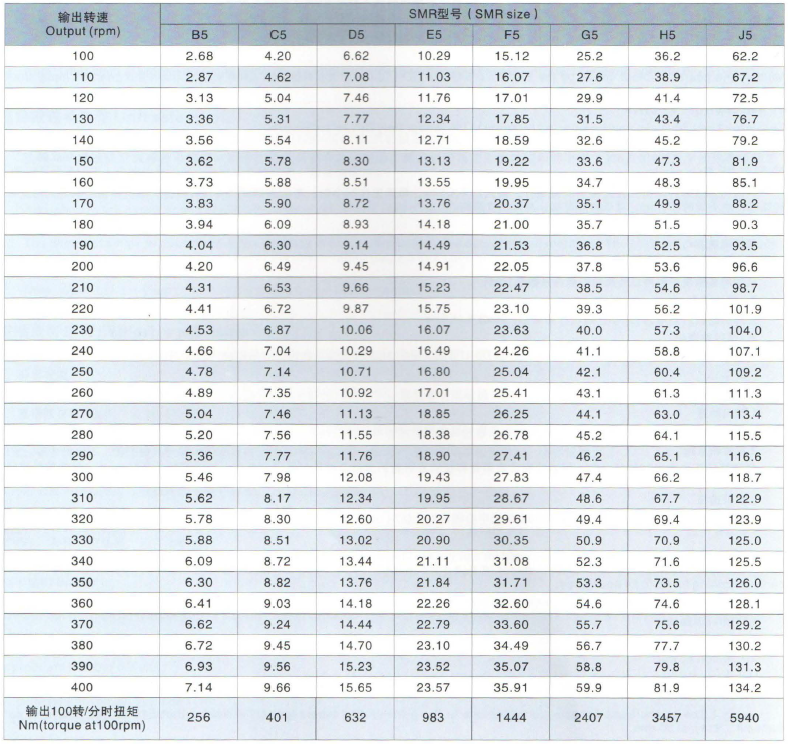

MR Shaft Mounted Reducer Power rating (kw) table for sin gle reduction 5:1 unitsMR Shaft Mounted Reducer Power rating(kw)table for double reduction 13: 1 and 20: 1 units
