Shear Bolt Torque Limiters (SB) For PTO Shaft

Shear bolt torque limiters (SB) for PTO shaft

Send Inquiry

Product Description

Shear bolt torque limiters (SB) for PTO shaft

The torque limiter interrupts the power trarpmission when the torque exceeds the settingvalue, by shearing the bolt Transmission is restored by inserting a new bolt in the device.

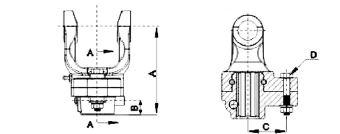

Shear Bolt Torque Limiters (SB) For PTO Shaft

SIZE	CODE	DESCRIPTION	MAX TORQUE NM	PROFILE	DIMENSIONS
					A	B	C	D
1	51	SB1	650	1” 3/8 Z6	95	19 21 22	45 35	M6x40 M8x45
	91	SB1	650
2	52	SB2	900		99		45 48
	92	SB2	950
3	53	SB3	1280		102		38 40
	93	SB3	1300
4	54	SB4	1480		107		48 55
	94	SB4	1700
5	55	SB5	1800		111		55 46	M8x50 M10x50
	95	SB5	2100
6	56	SB6	2100		137		60 55	M8x55 M10x55
	96	SB6	2500

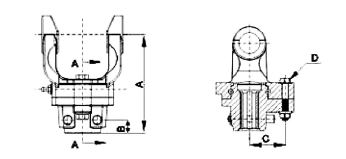

Shear Bolt Torque Limiters (SB) For PTO Shaft

SIZE	CODE	DESCRIPTION	MAX TORQUE NM	PROFILE	DIMENSIONS
					A	B	C	D
7	57	SB7 SB7	2500	1” 3/8 Z6	139	20	50	M10x60 M12x60
	97		3000				46
8	58	SB8 SB8 SB8 SB8	3000	1” 3/4 Z6	148	22	60	M10x60 M12x60 M10x60 M12x60
	98		3500				57
	59		3000				60
	99		3500				57
