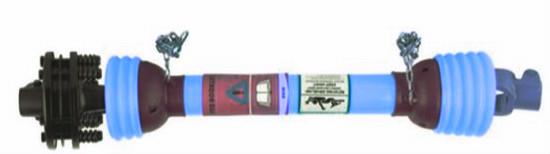

Pto shaft shear bolt torque limiters (SB) and yoke 1” 3/8 Z6 EC legislation

The torque limiter interrupts the power trarpmission when the torque exceeds the settingvalue, by shearing the bolt Transmission is restored by inserting a new bolt in the device.

Pto Shaft Shear Bolt Torque Limiters (SB) And Yoke 1” 3/8 Z6 EC Legislation

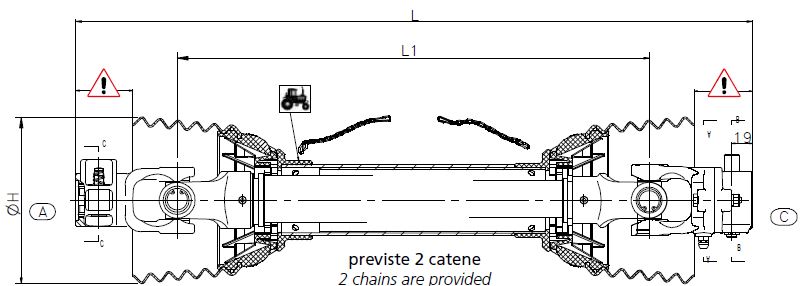

DIMENSIONE SIZE	Ø H	CODE	46	51	56	61	66	71	76	81	86	91	101	111	121	131	C
DIMENSIONE SIZE	Ø H	LENGHTS (mm.)
SB
1	15330	L1 L	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310	51
1	15330		648	698	748	798	848	898	948	998	1048	1098	1198	1298	1398	1498	51
2	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310	52
2	15330	L	658	708	758	808	858	908	958	1008	1058	1108	1208	1308	1408	1508	52
3	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310	53
3	15330	L	674	724	774	824	874	924	974	1024	1074	1124	1224	1324	1424	1524	53
4	15330	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310	54
4	15330	L	675	725	775	825	875	925	975	1025	1075	1125	1225	1325	1425	1525	54
5	18800	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310	55
5	18800	L	682	732	782	832	882	932	982	1032	1082	1132	1232	1332	1432	1532	55
6	18800	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310	56
6	18800	L	715	765	815	865	915	965	1015	1065	1115	1165	1265	1365	1465	1565	56
7	18800	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310	57
7	18800	L	715	765	815	865	915	965	1015	1065	1115	1165	1265	1365	1465	1565	57
8	18800	L1	460	510	560	610	660	710	760	810	860	910	1010	1110	1210	1310	58
8	18800	L	732	782	832	882	932	982	1032	1082	1132	1182	1282	1382	1482	1582	58
