Planetary GearBoxes For Construction Equipment

Construction equipment is a necessary component of any building project, and the machinery used must be efficient and reliable. One of the most important components of this equipment is the gearbox, which transmits power from the engine to the wheels or tracks. Planetary gearboxes are a popular choice due to their compact size and high efficiency.

Send Inquiry

Product Description

Planetary GearBoxes for Construction equipment

Wheel Drive , Slew Drive and track drive

The EP7 series slew drives by Raydafon Transmission Co., Ltd enjoy following features:

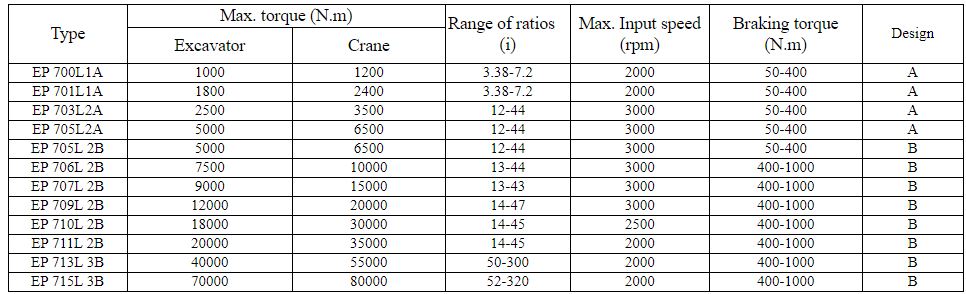

Output torque Range:1000 ... 80000 N.m Gear Ratios: i=3,3 ... 3000

Support: slew support (with Flange mounted) Electric Brake:DC and AC type

Output shaft: splined or with integral pinion. Output shafts supported by heavy duty capacity bearings

Applicable motors: axial piston hydraulic motors, Hydraulic orbit motors, IEC electric motors

Hydraulic motor options:Pressure relief valve, Over center valve, parking brake on request

Planetary GearBoxes For Construction Equipment
