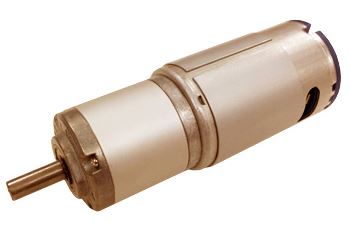

165RPM HD precision planetary gear motor
Maximum torque: 680.5 oz-in. (12VDC)
No load current: 0.53A
Gear ratio: 51:1
The 12V, 165RPM 680.5oz-in Precision Planetary Gearmotor offers dual ball bearings, full metal gears, and extreme power.
Features
Dual ball bearings
Full metal planetary gears
Operating voltage range: 6~12VDC
Rated voltage: 12VDC
Rated load: 7.3 kgf-cm (101.4 oz-in)
Operating temperature: -10 ~ +60°C
Stall torque: 49 kgf-cm (680.5 oz-in)
Speed (no-load): 165 RPM
Maximum current (no-load): 0.53A
Maximum stall current: 20A @ 12VDC
Dielectric strength: 250V AC
Motor brush type: Graphite
Output power at maximum efficiency: 11W
Gear type: Planetary
Gear ratio: 51:1
Bearing type: Dual ball bearing
| PLANETARY GEARED MOTORS | |
| TORQUE | 4 KGM TO 45,000 KGM |
| SPEED | 500 RPM TO 0.01 RPM |
| INPUT POWER | FRACTIONAL HP TO 380 HP |
| MOUNTINGS | FOOT , FLANGE , AGITATOR. |
