Gear Motor For Greenhouse

Portability, output torque, output lock, wide range and precise adjustment, waterproof, dew-proof and power-saving are the key characteristics for Electric Roll-Up Unit, which is the best choice for modern daylight greenhouse applied in different climates.

Send Inquiry

Product Description

gear motor for greenhouse

Power( w)	64w -84w	78w-96w	200w-220w	200w-220w
Max torque	40-60 N.m	50-70 N.m	250-270 N.m	190N.m
Rolling Length	80m	110m	200m	200m
Roll speed(rpm)	3.8	3.8	2.2	3.2
Electric system	24V DV	24V DV	24V DV	24V DV

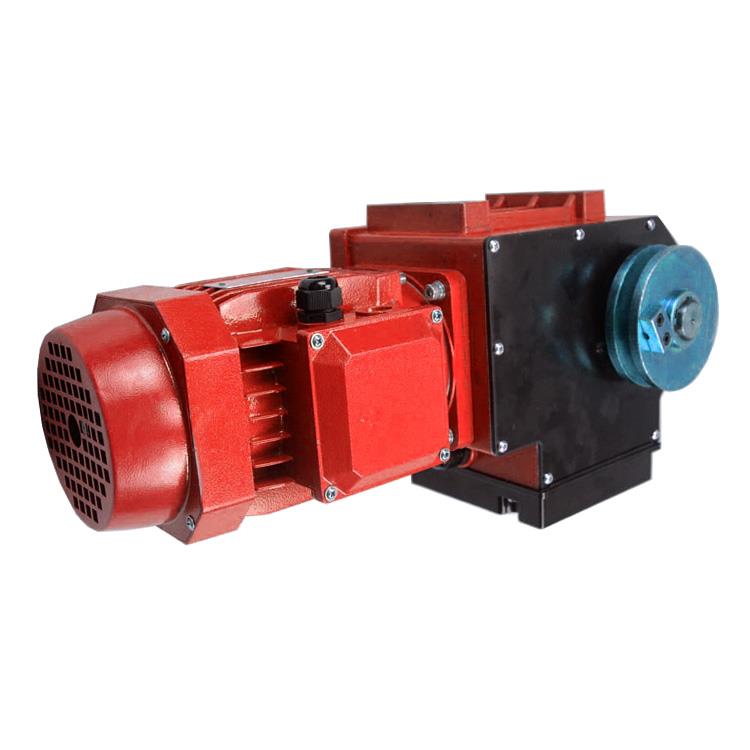

Gear Motor For Greenhouse

Electric motors for RW motor gearboxes, 3-phase eurovoltage version.

Suitable for use on 400 V and 50 Hz in star circuit;

Suitable for use on 230 V and 50 Hz in delta circuit;

Electric motors are standard tropic-proof and conform to protection class IP55;

Electric motors are insulation class F (40ºC);

Suitable for intermittent use, duty class s3-30%, duty cycle maximum 25 minutes;

Manual drive enabled by means of a hexagon socket in the electric motor shaft.

Art. no.	CSA/UL (C/U)	m (kg)	Hexagon (mm)	Cable gland	P (kW) - 50Hz	I (A) - 400V\50Hz	I (A) - 230V\50Hz	cos ϕ - 50Hz	PTC Thermistor 150ºC
763010		3,0	6	M20	0,09	0,41	0,71	0,60
763097		11,3	8	M20	2,00	4,5	7,8	0,75
763397		11,3	8	M20	2,00	4,5	7,8	0.86	PTC Thermistor150ºC
763020		3,5	6	M20	0,12	0,46	0,80	0,60
763030		5,2	6	M20	0,25	0,70	1,21	0,77
763035		3,7	6	M20	0,30	1,08	1,86	0,73
763040		5,2	6	M20	0,37	1,1	1,9	0,75
763060		8,0	8	M20	0,55	1,4	2,4	0,77
763070		8,1	8	M20	0,75	2,0	4,8	0,80
763080		9,6	8	M20	1,10	2,8	4,8	0,83
763085		9,9	8	M20	1,10	2,8	4,8	0,83
763090		11,0	8	M20	1,50	4,5	7,8	0,75
763095		11,3	8	M20	1,50	4,5	7,8	0,75
753020			6	M20	0,18	0,65	1,06		•	0,96
